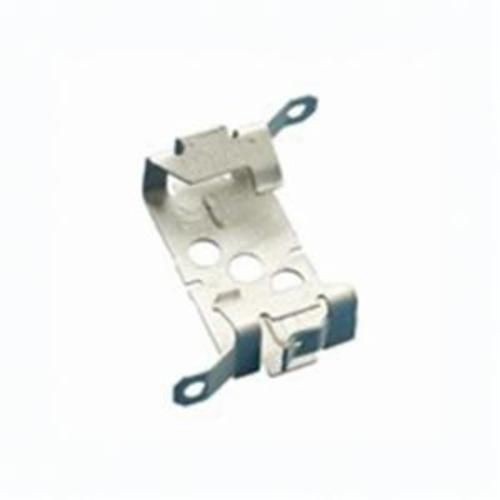

nVent ERICO nVent CADDY MAC2 Conduit/Cable to Stud Fastener, For Use With (2) MC/AC Cable, 1/8 in Flange THK/14-2 to 10-3 MC/AC Cable, Steel
nVent ERICO nVent CADDY MAC2 Conduit/Cable to Stud Fastener, For Use With (2) MC/AC Cable, 1/8 in Flange THK/14-2 to 10-3 MC/AC Cable, Steel
SKU: CADMAC2
Manufacturer Part Number: MAC2
UPC: 782856326373
Documents
Features
- Manufactured with stabilizer legs for virtually "wobble-free" support
- Snaps into place on metal stud and beam flange
- No tools required for installation
- Pre-punched holes in clip allow it to be screwed to wood stud, concrete or block
- Compliant with NEC® Article 300.4(d), allowing cable to be positioned a minimum of 1-1/4 in from face of stud
- Compliant with CEC Rule 12-618 for support of MC/AC cable
- Factory riveted assemblies are available for installation on flange, purlin, acoustical tee, drop wire, concrete, block or wood and metal stud
- MAC2 snaps in half to accommodate single run of cable effectively making two clips from one
Specification
| Material | Steel |
|---|---|
| Mounting Type | Snap-In |
| Standard & Approvals | cULus Listed |
| Finish | Caddy® Armour |
| Suitable For Use With | (2) MC/AC Cable |
| Specifications | 1/8 in Flange Thickness/14-2 to 10-3 MC/AC Cable |
