nVent ERICO VFC2C Type VF Mold, 1/0 AWG Concentric Conductor, Cable to Vertical Steel, Graphite

Selected nVent ERICO VFC2C Type VF Mold, 1/0 AWG Concentric Conductor, Cable to Vertical Steel, Graphite
nVent ERICO VFC2C Type VF Mold, 1/0 AWG Concentric Conductor, Cable to Vertical Steel, Graphite

Short Description

nVent ERICO® Cadweld® graphite molds are designed and engineered for thousands of connection styles and conductor combinations.

Features

  • Forms a permanent, low resistance connection
  • Provides a molecular bond
  • nVent ERICO® Cadweld® exothermic connections are rated with the same current capacity as the conductor
  • Portable installation equipment with no external source of power required
  • Installers can be easily trained to make nVent ERICO® Cadweld® exothermic connections
  • Connections can be visually inspected

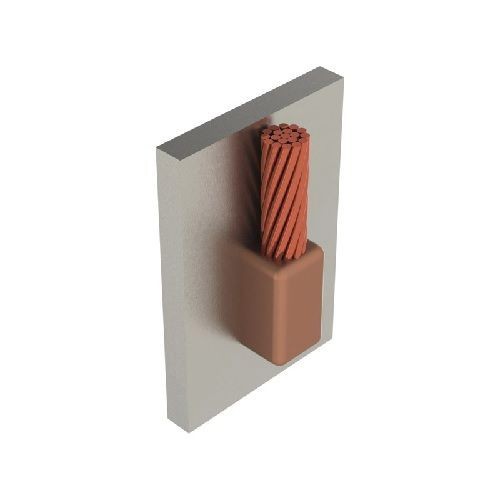

  • Vertical tap up
  • 150/150PLUSF20 welding material sold separately
  • L160 and B396 handle clamp sold separately
  • Preferred ease of use

Specification

Connection Type
Cable to Vertical Steel
Standard & Approvals
ANSI/UL 467, CSA C22.2 No. 41, cULus Certified
Application
Computer Room, Tunnel or other Low-Ventilation Areas
Type
Type VF
Specifications
0.373 in OD Conductor to 24 in OD Pipe
Mold Price Key
C
Material
Graphite
Handle Clamp
L160 and B396
Conductor Size
1/0 AWG Concentric
