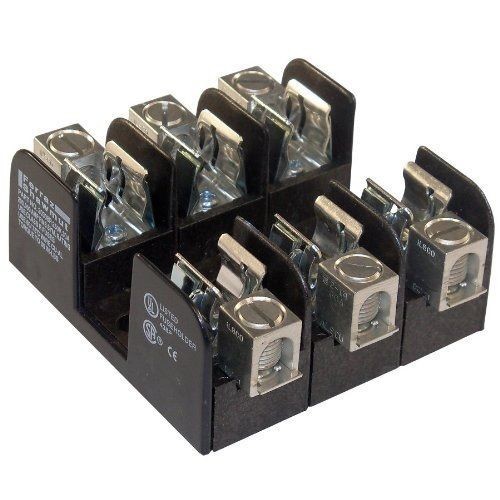

Mersen 30313 Open Style Fuse Block, 600 VAC/VDC, 30 A, 14 to 10 AWG Wire, 3 Poles

Selected GOU30313
GOU30313

Documents

Short Description

Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere class CC fuses. A choice of box, screw or pressure plate connectors fit a wide range of stranded or solid copper wire. Insulators are glass filled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin plated copper alloy.

Features

  • 20 in-lb torque rating
  • Tin plated copper alloy clip
  • Glass filled polycarbonate

Specification

Fuse Diameter
13/32 in
Fuse Length
1-1/2 in
Material
Polycarbonate
Number of Phases
3
Number Of Poles
3
Temperature Rating
125 deg C
Type
Open Style
Voltage Rating
600 VAC/VDC
Wire Size
14 to 10 AWG
Standard & Approvals
UL Listed, CSA Certified
Amperage Rating
30 A
Class
Midget
Suitable For Use With
ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A115QS-2, GFN, GGU, A60Q-2 and DCT Midget Fuses
Connection Type
Screw with Double Quick Connect
Dimensions
2.35 in W x 0.75 in D x 3.04 in H
