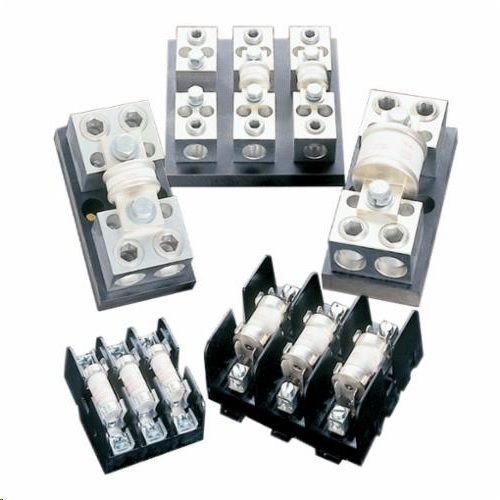

Mersen 31003T Open Style Fuse Block, 300 VAC/160 VDC, 100 A, Class: T, 12 to 2/0 AWG Wire, 3 Poles

Selected GOU31003T
GOU31003T

Documents

Short Description

MERSEN class T fuse blocks accommodate class T fuses up to 600 A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. MERSEN is the only manufacturer to offer class T blocks with copper connectors.

Features

  • Unique integral DIN rail adapters for 600 VAC, 30 and 60 A blocks
  • Full barrier design (30 and 60 A) increases pole to pole safety
  • Unique adder block design (30 and 60 A) for design flexibility
  • Spring reinforcing standard for all 30 and 60 A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 to 600 A) connectors

Specification

Material
Phenolic
Mounting Type
Threaded
Number of Phases
3
Number Of Poles
3
Suitable For Use With
A3T Fuse
Temperature Rating
150 deg C
Type
Open Style
Voltage Rating
300 VAC/160 VDC
Wire Size
12 to 2/0 AWG
Standard & Approvals
RoHS Compliant, UL 4248-15 Guide IZLT File No. E52283, UL 4248-15 Guide IZLT2 File No. E52283 Recognized, CSA C22.2 Class 6225-01 File No. 32169_0_000, CE Certified
Amperage Rating
100 A
Dimensions
4.78 in H x 4.38 in W x 1.95 in D
Class
T
Connection Type
Box
