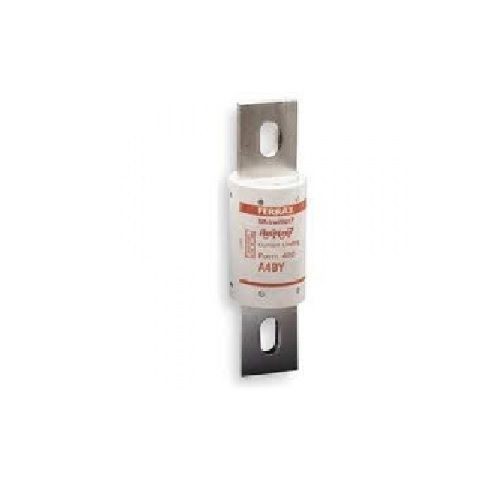

Mersen Amp-Trap® A4BY1200 Current Limiting Low Voltage Time Delay Fuse, 1200 A, 600 VAC/300 VDC, 200/100 kA Interrupt, L Class, Cylindrical Body

Selected Mersen Amp-Trap® A4BY1200 Current Limiting Low Voltage Time Delay Fuse, 1200 A, 600 VAC/300 VDC, 200/100 kA Interrupt, L Class, Cylindrical Body
Mersen Amp-Trap® A4BY1200 Current Limiting Low Voltage Time Delay Fuse, 1200 A, 600 VAC/300 VDC, 200/100 kA Interrupt, L Class, Cylindrical Body

Documents

Short Description

Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100% rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500% rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.

Features

  • Unique dimensions prevent replacement by other fuse classes
  • Blade stamped catalog numbers for permanent identification
  • Glass melamine body and plated terminals provide superior reliability in harsh environments
  • Uniform characteristics in all ampere ratings
  • North American power fuses

Specification

Interrupt Rating
200/100 kA
Material
GMG
Mounting Type
Bolt-On
Response Time
4 sec at 500%
Series
A4BY
Terminal Type
Knife Blade
Type
Current Limiting
Voltage Rating
600 VAC/300 VDC
Application
Mains, Feeders, Circuit Breakers, Load Centers, Panelboards, Switchboards and Metering Centers
Standard & Approvals
UL 248-10 File E2137, DC UL 248, CSA C22.2 No. 248.10, IEC 269-2-1 , RoHS Complaint
Amperage Rating
1200 A
Body Size
2-1/2 in Dia x 10-3/4 in L
Body Style
Cylindrical
Class
L
Element
Dual
