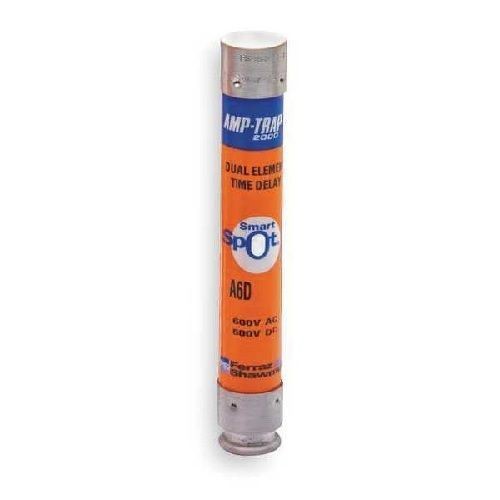

Mersen AMP-TRAP® 2000 SmartSpot® A6D35R Current Limiting Low Voltage North American Time Delay Power Fuse, 35 A, 600 VAC, 200 kA Interrupt, RK1 Class, Cylindrical Body
Mersen AMP-TRAP® 2000 SmartSpot® A6D35R Current Limiting Low Voltage North American Time Delay Power Fuse, 35 A, 600 VAC, 200 kA Interrupt, RK1 Class, Cylindrical Body
SKU: GOUA6D35R
Manufacturer Part Number: A6D35R
UPC: 782001992002
Documents
Specification
| Interrupt Rating | 200/100 kA |
|---|---|
| Material | Polyester |
| Mounting Type | Holder |
| Series | A6D-R |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Voltage Rating | 600 VAC |
| Application | Motors, Safety Switches, Transformers, Disconnects, Control Panels and All General Purpose Circuits |
| Amperage Rating | 35 A |
| Body Size | 1-1/16 in Dia x 5-1/2 in L |
| Body Style | Cylindrical |
| Class | RK1 |
| Element | Dual |
| Standard & Approvals | UL 248-12 File E2137, DC UL 248, CSA C22.2 No. 248.12 |
