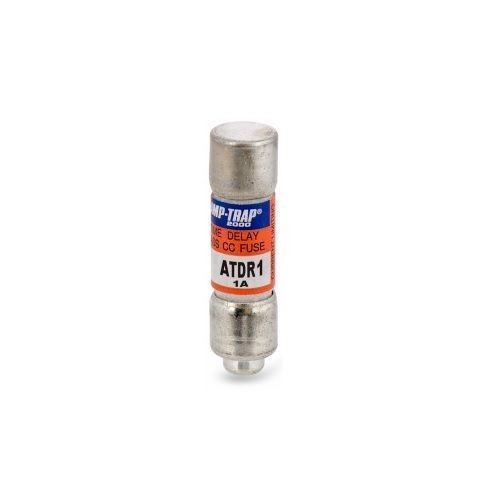

Mersen AMP-TRAP® 2000 SmartSpot® ATDR1 Current Limiting Low Voltage North American Time Delay Power Fuse, 1 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body

Selected Mersen AMP-TRAP® 2000 SmartSpot® ATDR1 Current Limiting Low Voltage North American Time Delay Power Fuse, 1 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body
Mersen AMP-TRAP® 2000 SmartSpot® ATDR1 Current Limiting Low Voltage North American Time Delay Power Fuse, 1 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body

Documents

Short Description

Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.

Features

  • Time-delay for motor starting inrush currents without nuisance opening
  • Highly current limiting for low peak let-thru current
  • Improved cycling ability for frequent motor starts/stops without nuisance fuse opening
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label ensures instant recognition, simplifies replacement
  • Metal embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High grade silica filler ensures fast arc quenching and optimum current limitation
  • Tin-plated copper contact material
  • North American power fuses

Specification

Interrupt Rating
200/100 kA
Material
GMG
Mounting Type
Holder
Series
ATDR
Terminal Type
Ferrule
Type
Current Limiting
Voltage Rating
600 VAC
Application
Small Motors, Contactors, Branch Circuit Protection, Lighting, Heaters and General Loads
Standard & Approvals
UL 248-4, CSA C22.2, No. 248.4
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Class
CC
Element
Dual
Amperage Rating
1 A
