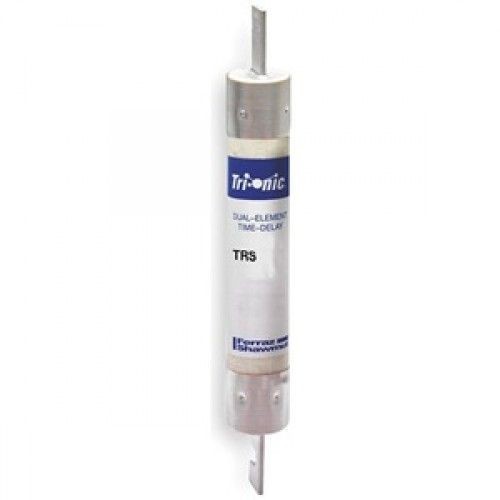

Mersen Tri-Onic® TRS100R Current Limiting Low Voltage Time Delay Fuse, 100 A, 600 VAC/VDC, 200/100 kA Interrupt, RK5 Class, Cylindrical Body

Selected Mersen Tri-Onic® TRS100R Current Limiting Low Voltage Time Delay Fuse, 100 A, 600 VAC/VDC, 200/100 kA Interrupt, RK5 Class, Cylindrical Body
Mersen Tri-Onic® TRS100R Current Limiting Low Voltage Time Delay Fuse, 100 A, 600 VAC/VDC, 200/100 kA Interrupt, RK5 Class, Cylindrical Body

Features

    Specification

    Interrupt Rating
    200/100 kA
    Material
    Polyester
    Mounting Type
    Holder
    Minimum Order Qty
    1
    Order Interval
    1
    Amperage Rating
    100 A
    Body Size
    1-5/16 in Dia x 7-7/8 in L
    Body Style
    Cylindrical
    Catalog ID
    GOUTRS100R
    Class
    RK5
    Element
    Dual
    Series
    TRS-R
    Terminal Type
    Knife Blade
    Type
    Current Limiting
    Voltage Rating
    600 VAC/VDC
    Application
    Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment
    Standard & Approvals
    UL 248-12 File E2137, CSA C22.2 No. 248.12
