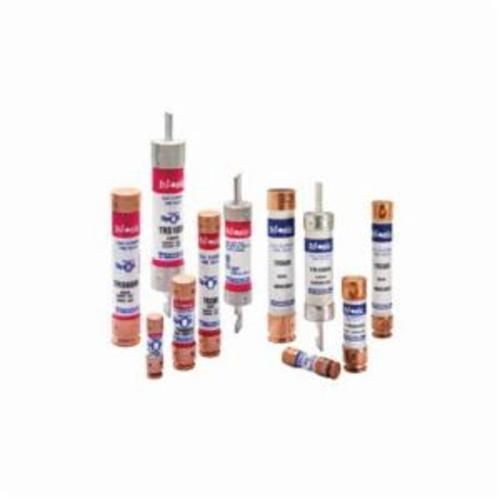

Mersen Tri-Onic® TRS17-1/2R Current Limiting Low Voltage Time Delay Fuse, 17-1/2 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Selected TRS1-1/4RMersen Tri-Onic® TRS75R Current Limiting Low Voltage Time Delay Fuse, 75 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
TRS1-1/4RMersen Tri-Onic® TRS75R Current Limiting Low Voltage Time Delay Fuse, 75 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Documents

Short Description

Tri-Onic TRS-R current-limiting time-delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with todays motors and transformers.

Features

  • Optional solid state SmartSpot blown fuse indicator
  • Time-delay for motor start-ups and transformer inrush currents without nuisance opening
  • Current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors
  • Easy-to-read label for quick brand recognition and replacement
  • Metal embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High grade silica filler ensures fast arc quenching and high current limitation
  • North American power fuses

Specification

Interrupt Rating
200/20 kA
Material
Polyester
Mounting Type
Holder
Series
TRS-R
Terminal Type
Ferrule
Type
Time Delay
Voltage Rating
600 VAC/300 VDC
Standard & Approvals
UL 248-12 File E2137, CSA C22.2 No. 248.12
Amperage Rating
17-1/2 A
Body Size
13/16 in Dia x 5 in L
Body Style
Cylindrical
Class
RK5
Element
Dual
