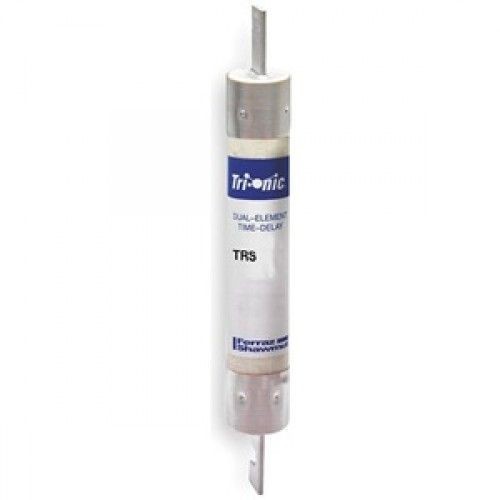

Mersen Tri-Onic® TRS70R Current Limiting Low Voltage Time Delay Fuse, 70 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
Mersen Tri-Onic® TRS70R Current Limiting Low Voltage Time Delay Fuse, 70 A, 600 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
SKU: GOUTRS70R
Manufacturer Part Number: TRS70R
UPC: 782001749071
Documents
Specification
| Interrupt Rating | 200/20 kA |
|---|---|
| Material | Polyester |
| Mounting Type | Holder |
| Series | TRS-R |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Voltage Rating | 600 VAC/VDC |
| Standard & Approvals | UL 248-12 File E2137, CSA C22.2 No. 248.12 |
| Amperage Rating | 70 A |
| Body Size | 1-5/16 in Dia x 7-7/8 in L |
| Body Style | Cylindrical |
| Class | RK5 |
| Element | Dual |
