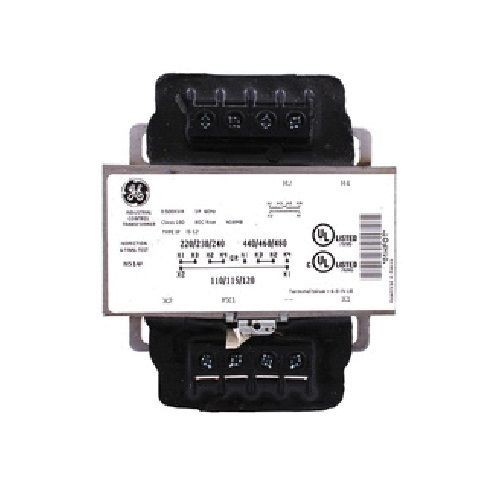

GE 9T58K0090 Core/Coil Dry Fully Encapsulated Power Transformer, 208/277/380 VAC Primary, 115/95 VAC Secondary, 0.5 kVA Power Rating, 50 Hz, 1 ph Phase

Selected GE 9T58K0090 Core/Coil Dry Fully Encapsulated Power Transformer, 208/277/380 VAC Primary, 115/95 VAC Secondary, 0.5 kVA Power Rating, 50 Hz, 1 ph Phase
GE 9T58K0090 Core/Coil Dry Fully Encapsulated Power Transformer, 208/277/380 VAC Primary, 115/95 VAC Secondary, 0.5 kVA Power Rating, 50 Hz, 1 ph Phase

Documents

Short Description

Type IP transformers are core and coil units designed for machine tool, industrial control, panel board and general-purpose applications. These designs are now welded core and encapsulated to provide the highest quality electrical performance. The transformer coil is completely surrounded by epoxy, making the unit impervious to external elements. The lamination core is welded to provide superior quiet performance.

Features

  • Fully encapsulated coil is impervious to moisture
  • Pressure plate terminals ensure secure connections
  • Terminal board is anchored in the epoxy for greater reliability
  • Wide variety of fusing options
  • Rugged, high impact plastic terminal board
  • Full head No 8 brass screws assure quick, easy terminations with maximum connection integrity
  • Copper windings
  • Flexible design allows input or output voltage to match any application
  • Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
  • Copper coil
  • 115 deg C temperature rise
  • 180 deg C temperature class
  • K1 K factor
  • Terminal board connection

Specification

Frequency Rating
50/60 Hz
Phase
1
Power Rating
0.5 kVA
Temperature Rating
40 deg C
Enclosure Type
Open
Series
9T58K
Secondary Voltage
115/95 VAC
Circuit Type
10225 Frame
Dimensions
4.56 in W x 3.9 in H
Standard & Approvals
CSA 3272, cUL 5085 E2739, GSA Compliant
Application
For machine tools are used to provide voltage to control devices in applications where regulation and minimum space are important
Type
Core/Coil
Primary Voltage
208/277/380 VAC
Insulation
IS-12
