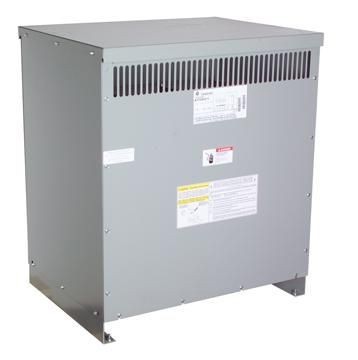

***CLEARANCE*** GE Industrial Solution 9T83B2613 Type QL Dry Vented General Purpose Transformer, 208 VAC Primary, 120/240 VAC Secondary, 50 kVA, 60 Hz, 1 Phase
***CLEARANCE*** GE Industrial Solution 9T83B2613 Type QL Dry Vented General Purpose Transformer, 208 VAC Primary, 120/240 VAC Secondary, 50 kVA, 60 Hz, 1 Phase
SKU: G-E9T83B2613
Manufacturer Part Number: 9T83B2613
UPC: 783173209998
Short Description
Features
- Quiet performance
- Core and coil assemblies are mounted on rubber isolation pads to reduce noise
- Bolted coil terminations
- 1-piece front/back is easily removable for service
- NEMA 2 drip proof enclosure is standard
- Copper or aluminum windings
- Copper ground strap
- Robust packaging with top and side protection protects against shipping damage
- Accessible mounting flanges with front/back slotted mounting holes make installation easier
- 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
- Clear, comprehensive documentation and labeling
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Clearance | YES |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Phase | 1 |
| Secondary Voltage | 120/240 VAC |
| Temperature Rating | 40 deg C |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, UL Recognized, ANSI Specified, IEEE-693-2005, IBC-2006, NEMA TP-1 |
| Power Rating | 50 kVA |
| Application | General Purpose Lighting, Electrical, Motor, Resistance Heating, Motor Generator (Without Solid State Drives), Electrical Distribution and Control Applications |
| Type | Type QL Dry Vented |
| Series | 9T |
| Primary Voltage | 208 VAC |
| Enclosure Type | NEMA 2 |
| Catalog ID | G-E9T83B2613 |
| Insulation | IS-19C |
