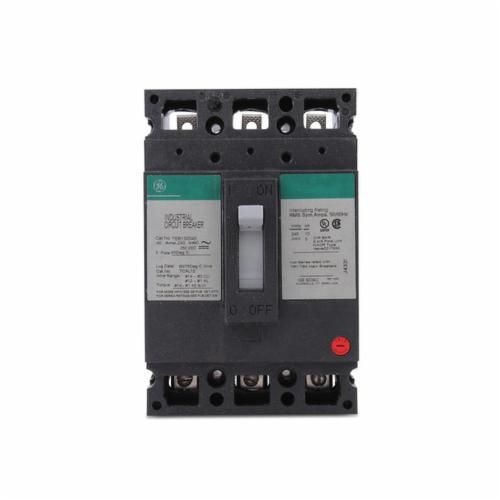

***CLEARANCE*** GE TEB132040 Type TEB Low Tier Molded Case Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles
***CLEARANCE*** GE TEB132040 Type TEB Low Tier Molded Case Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles
SKU: G-ETEB132040
Manufacturer Part Number: TEB132040
UPC: 783164068887
Documents
Features
- Suitable for reverse feed
- HACR special markings
- 10 kA at 240 VAC interrupt rating
Specification
| Frame | E150 |
|---|---|
| Interrupt Rating | 10 kA |
| Number Of Poles | 3 |
| Clearance | YES |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 40 A |
| Catalog ID | G-ETEB132040 |
| Connection Type | Load Lug |
| Phase | 3 |
| Temperature Rating | 10 to 50 deg C |
| Type | Type TEB Low Tier |
| Voltage Rating | 240 VAC |
| Dimensions | 6-5/16 in H x 4-1/8 in W x 3-3/8 in D |
| Trip Type | Non-Interchangeable/Thermal Magnetic/LI |
| Standard & Approvals | CSA LR57114, UL E11592 |
