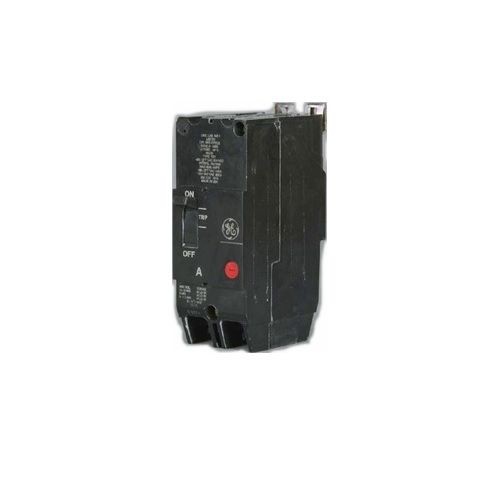

GE TEY240 Compact Lighting Panel Circuit Breaker, 120/240/277 VAC, 40 A, 14/65 kA Interrupt, 2 Poles, LI/Non-Interchangeable/Thermal Magnetic Trip

Selected GE TEY240 Compact Lighting Panel Circuit Breaker, 120/240/277 VAC, 40 A, 14/65 kA Interrupt, 2 Poles, LI/Non-Interchangeable/Thermal Magnetic Trip
GE TEY240 Compact Lighting Panel Circuit Breaker, 120/240/277 VAC, 40 A, 14/65 kA Interrupt, 2 Poles, LI/Non-Interchangeable/Thermal Magnetic Trip

Documents

Short Description

The TEY is a 1 in wide per pole, compact, "bolt-on" circuit-breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit-breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.

Features

  • Suitable for reverse feed
  • Standard continuous current rated
  • Fixed long time
  • Fixed instantaneous trip function
  • HACR special markings
  • Copper/aluminum wire
  • 14 kA at 480/277 VAC interrupt rating

Specification

Interrupt Rating
14 kA
Mounting Type
Bolt-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
40 A
Catalog ID
G-ETEY240
Connection Type
Load Lug
Dimensions
2 in W x 3-1/16 in D x 5-1/4 in H
Phase
1
Series
Q-Line
Temperature Rating
40 deg C
Trip Type
Non-Interchangeable/Thermal Magnetic/Long Instantaneous
Type
Type TEY
Voltage Rating
120/240/277 VAC
Wire Size
10 to 4 AWG
Application
For industrial applications
Standard & Approvals
CSA LR57114, UL E11592, GSA Compliant
Includes
Integral Copper/Aluminum Load Lug
