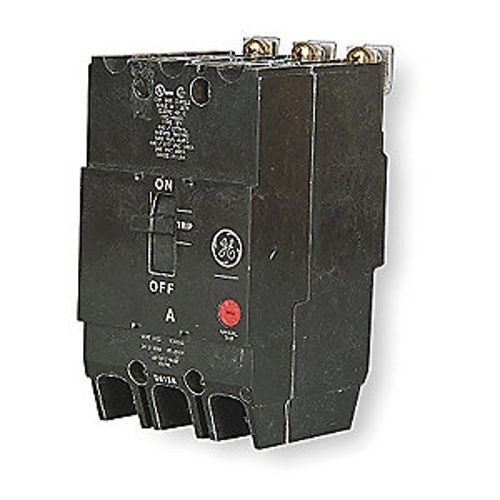

General Electric TEY340 Q-Line® Lighting Panel Circuit Breaker, 277/480 VAC, 40 A, 14 kA, 3 Poles, Non-InterchanGeneral Electricable Trip

Selected TEY340General Electric TEY340 Q-Line® Lighting Panel Circuit Breaker, 277/480 VAC, 40 A, 14 kA, 3 Poles, Non-InterchanGeneral Electricable Trip
TEY340General Electric TEY340 Q-Line® Lighting Panel Circuit Breaker, 277/480 VAC, 40 A, 14 kA, 3 Poles, Non-InterchanGeneral Electricable Trip

Short Description

The TEY is a one-inch wide per pole, compact, bolt-on circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories.

Features

  • Standard continuous current rated
  • LI trip function
  • EY GO schedule
  • UL listed HACR (heating, air Conditioning, refrigeration)
  • UL listed for HID (high intensity discharge), all 50 A or less
  • HACR, high intensity discharge (HID) rated special marking
  • Suitable for reverse feed
  • 65 kA at 120/240 VAC, 14 kA at 277 VAC

Specification

Frame
TEY
Interrupt Rating
14
Mounting Type
Bolt-On
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
40 A
Connection Type
Load Lug
Dimensions
5-1/4 in H x 3 in W x 3-1/16 in D
Phase
3
Series
Q-Line®
Temperature Rating
40
Trip Type
Non-Interchangeable
Voltage Rating
277/480 VAC
Application
Industrial
Includes
Integral Cu/Al Load Lugs
Catalog ID
G-ETEY340
Standard & Approvals
CSA File No LR57114, GSA Compliant, UL File No E11592
Wire Size
10 to 4 AWG Cu/Al
