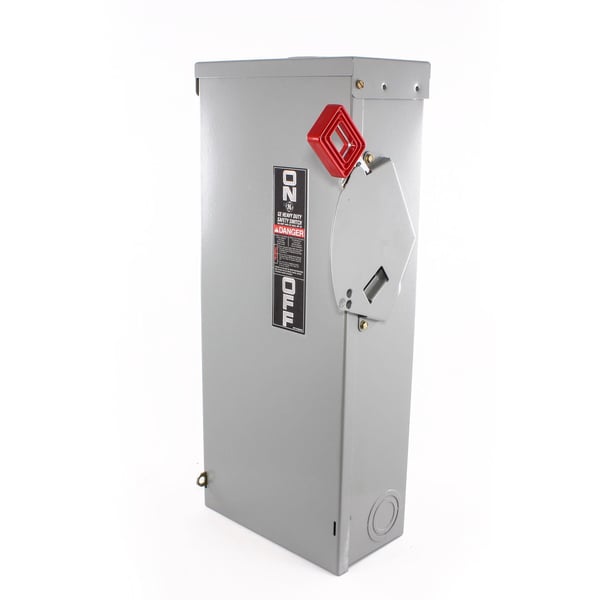

GE Spec-Setter™ TH3223R Fused Heavy Duty Safety Switch, 240 VAC, 100 A, 7-1/2 hp, 2 Poles
GE Spec-Setter™ TH3223R Fused Heavy Duty Safety Switch, 240 VAC, 100 A, 7-1/2 hp, 2 Poles
SKU: G-ETH3223R
Manufacturer Part Number: TH3223R
UPC: 783164008982
Documents
Short Description
Features
- Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
- Coin-proof, defeatable dual interlocks meet all safety inspection requirements
- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
- 3-point mounting pattern speeds installation and simplifies ganging in close quarters
- Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
- Plated blades provide visible confirmation of contact position
- Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses
- 7 hp at 240 VAC standard fuse, 15 hp at 240 VAC standard fuse, 15 hp at 240 VAC time delay, 30 hp at 240 VAC time delay, 20 hp at 250 VDC horsepower rating
Specification
| Number Of Poles | 2 |
|---|---|
| Short Circuit Current Rating | 200 kA |
| Number of Wires | 3 |
| Amperage Rating | 100 A |
| Dimensions | 10.2 in W x 9.8 in D x 22.1 in H |
| Terminal Type | Line/Load Lug |
| Mounting Type | 3-Point/Self-Leveling |
| Type | Fused Heavy Duty |
| Frequency Rating | 50/60 Hz |
| Material | Stainless Steel |
| Phase | 1 |
| Voltage Rating | 240 VAC |
| Insulation Type | Class H/J/K/R |
| Temperature Rating | 60 to 75 deg C |
| Actuator Type | Handle |
| Enclosure Type | NEMA 3R |
| Finish | Hot Dipped Galvanized/Powder Coated |
| Horsepower | 7-1/2 hp |
