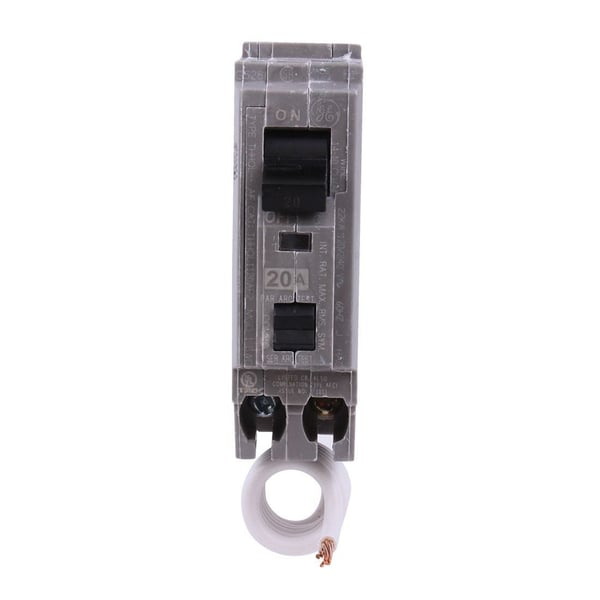

GE THHQB1120AF2 Q-Line Type THHQB Molded Case Circuit Breaker With 1 and 2-Pole Combination Arc Fault Circuit Interrupter, 120/240 VAC, 20 A, 22 kA Interrupt, 1 Poles, LI/Fixed Thermal Magnetic Trip
GE THHQB1120AF2 Q-Line Type THHQB Molded Case Circuit Breaker With 1 and 2-Pole Combination Arc Fault Circuit Interrupter, 120/240 VAC, 20 A, 22 kA Interrupt, 1 Poles, LI/Fixed Thermal Magnetic Trip
SKU: G-ETHHQB1120AF2
Manufacturer Part Number: THHQB1120AF2
UPC: 783164652895
Documents
Short Description
Features
- Copper stabs, tin plated for corrosion resistance, make the connection reliable and permanent
- Heat resistant thermoset cases and covers add stability and structural rigidity
- Trips are easy to spot because handles trip to the center position
- The dedicated calibration screw is cemented (not simply papered over) to prevent shifting, the result is stable calibration for optimum trip performance
- 14 to 10 AWG (Cu/Al) wire range
Specification
| Series | Q-Line |
|---|---|
| Temperature Rating | 10 to 50 deg C |
| Trip Type | LI/Fixed Thermal Magnetic |
| Type | Type THHQB |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 10 AWG |
| Application | Residential Applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E11592 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator Type | Pivot Handle |
| Amperage Rating | 20 A |
| Catalog ID | G-ETHHQB1120AF2 |
| Connection Type | Load Lug |
| Dimensions | 3-9/32 in H x 1 in W x 2-3/8 in D |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 22 kA |
| Material | Plastic |
| Mounting Type | Bolted-On |
| Number Of Poles | 1 |
| Phase | 1 |
