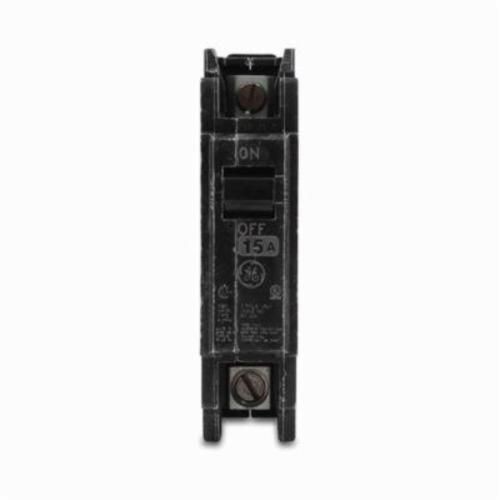

GE Q-Line THQC1115 Type THQC Thermal Magnetic Molded Case Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole
GE Q-Line THQC1115 Type THQC Thermal Magnetic Molded Case Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole
SKU: G-ETHQC1115
Manufacturer Part Number: THQC1115
UPC: 783164116038
Documents
Features
- The QC breakers are lug-lug versions of the Q Line and are available for 35mm DIN rail mounting
- All Q Line circuit breakers feature quick make/quick break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability
- Q Line breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories
- Non-interchangeable trip
- Compact design
- Provide cost effective solutions
- Quick-connect version available
- Cu/Al wire
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Plug-In |
| Number Of Poles | 1 |
| Phase | 1 |
| Trip Type | Long Time and Instantaneous |
| Voltage Rating | 120/240 VAC |
| Application | For residential and commercial applications |
| Amperage Rating | 15 A |
| Connection Type | Load Lug |
| Dimensions | 3-9/32 in H x 1 in W x 2-3/8 in D |
| Standard & Approvals | UL E11592, UL 489, Federal Specification (WC-375B), HACR Rating |
| Type | Type THQC Thermal Magnetic |
| Wire Size | 14 to 8 AWG/12 to 8 AWG |
