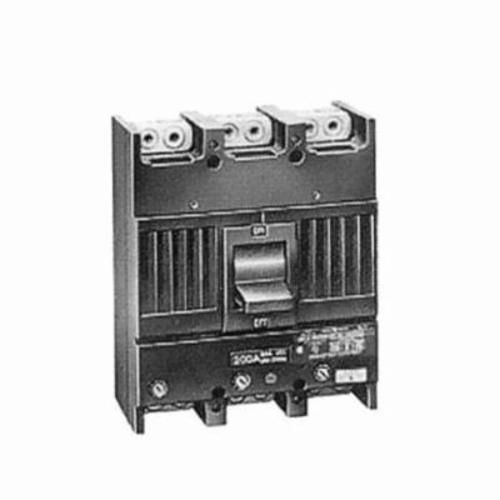

GE TJD422400WL Type TJD Thermal Magnetic Molded Case Circuit Breaker With Lugs, 240 VAC/250 VDC, 400 A, 2 Poles
Selected TJD422400WLGE TJD422400WL Type TJD Thermal Magnetic Molded Case Circuit Breaker With Lugs, 240 VAC/250 VDC, 400 A, 2 Poles
GE TJD422400WL Type TJD Thermal Magnetic Molded Case Circuit Breaker With Lugs, 240 VAC/250 VDC, 400 A, 2 Poles
SKU: G-ETJD422400WL
Manufacturer Part Number: TJD422400WL
Documents
Features
- Non-interchangeable trip
- Standard continuous current rated
- For reverse feed
- The TJD line of devices include thermal magnetic molded case circuit breakers and molded case switches
- The devices are complete with Cu/Al line and load lugs
Specification
| Frame | Q |
|---|---|
| Interrupt Rating | 22/10 kA |
| Number Of Poles | 2 |
| Phase | 1 |
| Trip Type | Long Time and Instantaneous |
| Type | Type TJD Thermal Magnetic |
| Voltage Rating | 240 VAC/250 VDC |
| Standard & Approvals | UL E11592 Listed |
| Amperage Rating | 400 A |
| Dimensions | 10-1/8 in H x 8-1/4 in W x 3-13/16 in D |
| Connection Type | Cable-In/Cable-Out (Lug-Lug) |
