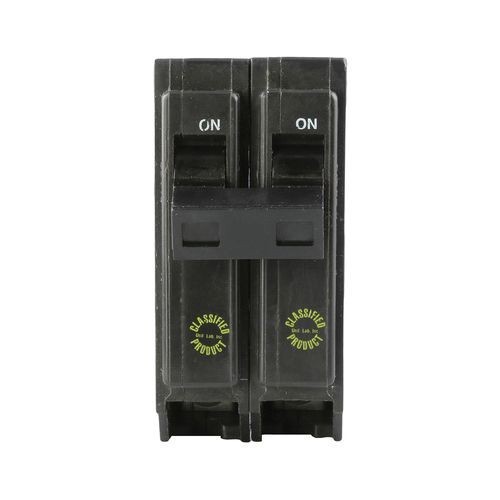

GE Q-Line® TQ2115 Type TQ Special Purpose Circuit Breaker, 240 VAC, 15 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable/Internal Common/Thermal Magnetic Trip
GE Q-Line® TQ2115 Type TQ Special Purpose Circuit Breaker, 240 VAC, 15 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable/Internal Common/Thermal Magnetic Trip
SKU: G-ETQ2115
Manufacturer Part Number: TQ2115
UPC: 783164083880
Documents
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Plug-In |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | G-ETQ2115 |
| Connection Type | Terminal Box |
| Dimensions | 3 in H x 1-1/2 in W x 2-3/8 in D |
| Phase | 1 |
| Series | TQ |
| Temperature Rating | 10 to 50 deg C |
| Terminal Type | Lug |
| Voltage Rating | 240 VAC |
| Standard & Approvals | UL Listed |
| Application | For use in Square D QO load centers, resdenstial |
| Wire Size | 14 to 8 AWG Copper |
| Trip Type | Internal Common |
