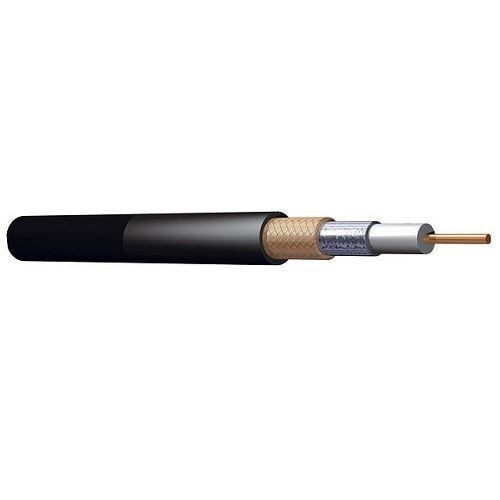

Genesis, Coaxial Siamese Cable, RG59 with 18/2, Copper, Polyvinyl Chloride, Braid, Non-Plenum
Selected GEN5013-10-08Genesis, Coaxial Siamese Cable, RG59 with 18/2, Copper, Polyvinyl Chloride, Braid, Non-Plenum
Genesis, Coaxial Siamese Cable, RG59 with 18/2, Copper, Polyvinyl Chloride, Braid, Non-Plenum
SKU: WCEGEN5013-10-08
Manufacturer Part Number: GEN5013-10-08
Documents
Specification
| Impedance | 75 Ohm |
|---|---|
| Outside Diameter | 0.42 in |
| Type | Solid |
| Voltage Rating | 300 V |
| Color | Black |
| Conductor Material | Copper |
| Shield Type | Braid |
| Resistance | 10.9 Ohm @ Conductor;2.6 Ohm @ Shield |
| Jacket Rating Code | Non-Plenum |
| Jacket Material | Polyvinyl Chloride |
| Insulation Material | Polyethylene;Polypropylene |
| Capacitance | 17 pF |
| Attenuation | 0.2 db @ 1 MHz;5.9 db @ 400 MHz;10.8 db @ 1000 MHz |
| Conductor Size | 18 AWG;20 AWG |
| Temperature Rating | -20 to +75 Deg C |
