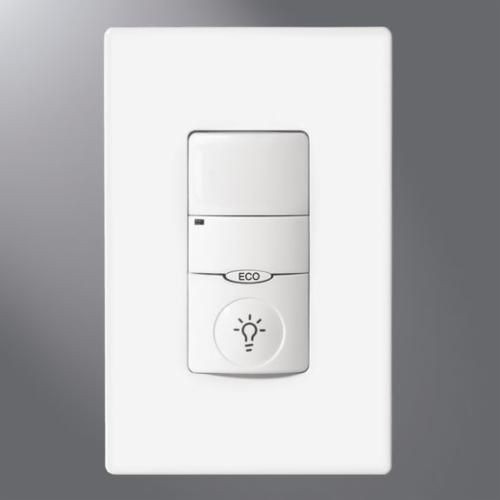

Sensors ONW-P-1001-MV-W 2-Tier Dual Relay Low Voltage NeoSwitch Wall Switch Occupancy Sensor, 120/277 VAC, Dual Technology/Passive Infrared/Ultrasonic Sensor, 36 sq-ft Coverage, 180 deg Viewing, Wall Mount

Selected Sensors ONW-P-1001-MV-W 2-Tier Dual Relay Low Voltage NeoSwitch Wall Switch Occupancy Sensor, 120/277 VAC, Dual Technology/Passive Infrared/Ultrasonic Sensor, 36 sq-ft Coverage, 180 deg Viewing, Wall Mount
Sensors ONW-P-1001-MV-W 2-Tier Dual Relay Low Voltage NeoSwitch Wall Switch Occupancy Sensor, 120/277 VAC, Dual Technology/Passive Infrared/Ultrasonic Sensor, 36 sq-ft Coverage, 180 deg Viewing, Wall Mount

Documents

Short Description

The Passive Infrared Dual Relay Occupancy Sensing Wall Switch is a motion sensing lighting control and conventional wall switch all-in-one that is used for energy savings and convenience. The unit contains two relays that allow the control of two separate loads

Features

  • Air-gap switch ensures no leakage current to load
  • Selectable built-in light level sensor
  • NEMA WD7 guide robotic method utilized to verify coverage patterns
  • Automatically adjust light levels based on occupancy or natural light
  • ECO indicator intensity varies in real-time in direct response to occupants lighting energy efficiency habits
  • Replace any switch or dimmer with the most comprehensive offering of neutral and non-neutral units
  • Universally recognized light icon ensures all occupants can easily find and adjust lights
  • Surveyed users chose NeoSwitch as the easiest to use wall switch occupancy sensor compared to 4 other leading manufacturers
  • Industrys most comprehensive line-of neutral and non-neutral wiring options for easy installations in new or existing applications
  • Compatible with magnetic and electronic ballast
  • Self-Adjusting time delay
  • Durable injection-molded housing
  • ABS resin complies with UL 94V-0
  • 4.195 in H x 1.732 in W strap mounting
  • Red LED indicates PIR detection
  • Green LED indicates ultrasonic detection

Specification

Lamp Type
Fluorescent/Incandescent
Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Color
White
Coverage
1000 sq-ft
Power Rating
800/1200/2700 W
Response Frequency
50/60 Hz
Sensor Type
Dual Technology
Series
ONW-P
Temperature Rating
32 to 104 deg F
Time Delay
5 to 30 min
Viewing Angle
180 deg
Voltage Rating
120/277 VAC
Application
Offices, Small Conference Rooms, Lunch/Break Rooms, Classrooms, Restrooms 1-2 Stalls, Lounges, Waiting Rooms, Closets, Storage Areas and Indoor USE
Standard & Approvals
cULus Listed, FCC/RoHS Compliant, ECO Energy
Dimensions
1.752 in W x 1.9 in D x 2.618 in H
Control Output
Manual On
Catalog ID
HALONW-P-1001-MV-W
Amperage Rating
6.7/9.8/10 A
Material
ABS Resin
Includes
Pushbutton with Light/Fan Graphic
Type
Dual Relay
