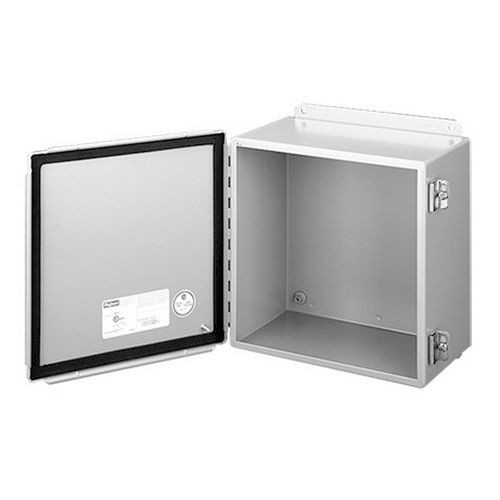

nVent HOFFMAN A51CH Junction Box, 10 in L x 8 in W x 4 in D, NEMA 12, 14 ga Steel

Selected nVent HOFFMAN A51CH Junction Box, 10 in L x 8 in W x 4 in D, NEMA 12, 14 ga Steel
nVent HOFFMAN A51CH Junction Box, 10 in L x 8 in W x 4 in D, NEMA 12, 14 ga Steel

Documents

Features

  • Oil-resistant gasket
  • Seams continuously welded and ground smooth
  • Continuous hinge, external screw clamps are quick and easy to operate, bonding provision on door
  • External welded-on mounting brackets for easy installation
  • NEMA 12, 13
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger

Specification

Length
10 in
Mounting Type
Wall
NEMA Rating
NEMA 12
Minimum Order Qty
1
Order Interval
1
Catalog ID
HOFA1008CH
Color
ANSI 61 Gray
Cover Type
Continuous Hinge With Clamp
Depth
4 in
Finish
Polyester Powder Painted
Panel Size
8.75 in L x 6.88 in W
Series
A51CH
Width
8 in
Standard & Approvals
UL 50/50E, Type 12, 13, File No. E27567, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E27567, UL 508A, Type 12, 13, File No. E61997, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File
Material
14 Ga Steel
