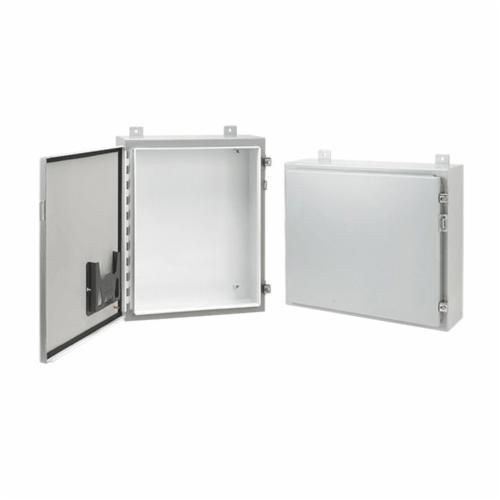

nVent HOFFMAN A201610LP Medium Single Door Wall Mount Enclosure, 20 in L x 16 in W x 10 in D, NEMA 12/IP65, Steel
nVent HOFFMAN A201610LP Medium Single Door Wall Mount Enclosure, 20 in L x 16 in W x 10 in D, NEMA 12/IP65, Steel
SKU: HOFA201610LP
Manufacturer Part Number: A201610LP
UPC: 783510283605
Documents
Features
- Enclosure bodies are 14 or 16 gauge steel, doors are 14 gauge steel
- Seams continuously welded and ground smooth
- External wall mounting brackets
- Formed external return flanges around all sides of enclosure opening
- Screw-down door clamps
- Removable heavy gauge continuous hinge pin
- Hasp and staple for padlocking
- Data pocket is high impact thermoplastic
- Collar studs provided for mounting optional panel
- Bonding provision on door
- White inside with ANSI 61 gray
- For applications requiring a bright white interior to increase control visibility
- ANSI 61 gray
Specification
| Length | 20 in |
|---|---|
| Material | Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 12/IP65 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Finish | Painted |
| Standard & Approvals | UL 508A, File No. E61997, cUL Listed per CSA C22.2 No. 94, File No. E61997, CSA File No. 42186, IEC 60529, RoHS Complaint |
| Width | 16 in |
| Panel Size | 17 x 13 in |
| Depth | 10 in |
| Lock | Hasp and Staple With Padlock |
| Catalog ID | HOFA201610LP |
| Cover Type | Continuous Hinged With Clamp |
| Series | A12 |
| Type | Medium Single Door |
