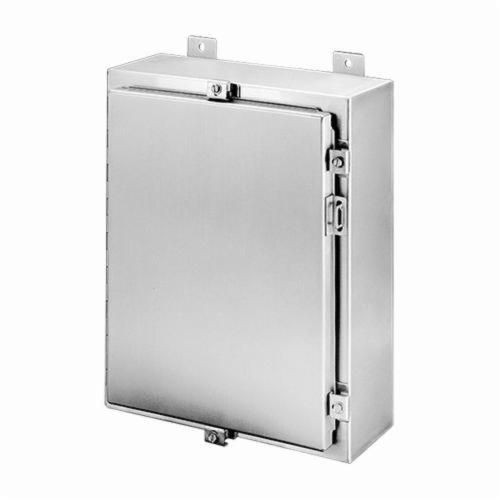

nVent HOFFMAN A20H2008SS6LP Single Door Wall Mount Enclosure, 20 in L x 20 in W x 8 in D, NEMA 4X/IP66
nVent HOFFMAN A20H2008SS6LP Single Door Wall Mount Enclosure, 20 in L x 20 in W x 8 in D, NEMA 4X/IP66
SKU: HOFA20H2008SS6LP
Manufacturer Part Number: A20H2008SS6LP
UPC: 783510836108
Documents
Features
- 14 gauge type 304 or 316L stainless steel bodies and doors
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high impact thermoplastic
- Collar studs provided for mounting optional panel
- Exterior hardware on type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door, grounding stud on body
- This enclosures seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants
- 14 ga 316L stainless steel
- NO 4 smooth brushed finish
Specification
| Length | 20 in |
|---|---|
| Mounting Type | Wall |
| Width | 20 in |
| Cover Type | Continuous Hinged With Clamp |
| Depth | 8 in |
| Finish | Brushed |
| NEMA Rating | NEMA 4X/IP66 |
| Material | 316L Stainless Steel |
| Lock | Hasp and Staple With Padlock |
| Standard & Approvals | UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, CSA File No. 42186: Type 4, 4X, 12 , IEC 60529, Meets NEMA Type 3RX requirements, RoHS Complaint |
| Type | Single Door |
| Series | A4S |
| Panel Size | 17 x 17 in |
