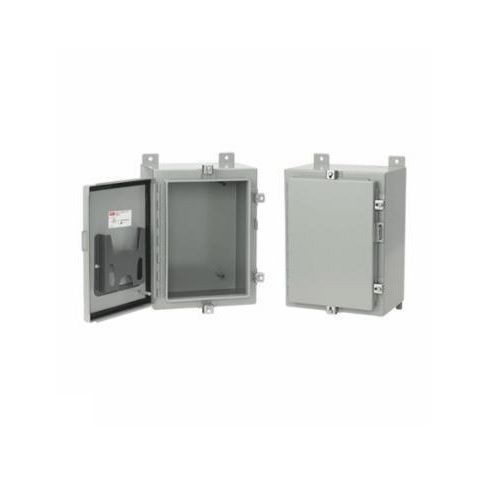

nVent HOFFMAN A24H20CLP A4 1-Door Enclosure, 24 in L x 20 in W x 10 in D, NEMA 4/IP66, Steel
nVent HOFFMAN A24H20CLP A4 1-Door Enclosure, 24 in L x 20 in W x 10 in D, NEMA 4/IP66, Steel
SKU: HOFA24H20CLP
Manufacturer Part Number: A24H20CLP
UPC: 783510243104
Features
- External wall mounting brackets for easy installation
- Formed external flanges around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Removable heavy gauge stainless steel continuous hinge pin
- Removable door with continuous hinge for strength and ruggedness
- Hasp and staple provided for padlocking
- Data pocket is high-impact thermoplastic
- Collar stud for mounting optional panels
- Bonding provision on door
- Seamless foam-in-place gasket
Specification
| Length | 24 in |
|---|---|
| Lock | Hasp and Staple/Padlock |
| Material | Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 4/IP66 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HOFA24H20CLP |
| Color | Gray |
| Cover Type | Continuous Hinged/Clamp |
| Depth | 10 in |
| Finish | Polyester Powder Coated |
| Panel Size | 21 in H x 17 in W |
| Series | A4 |
| Type | 1-Door |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Width | 20 in |
