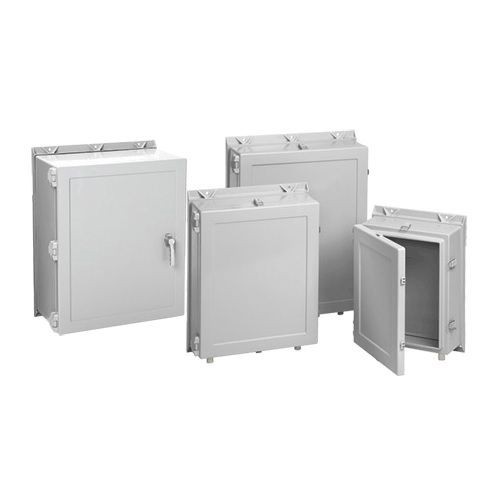

nVent HOFFMAN A30H2412GQRLP A17W3/A17WM 1-Door Medium Wall Mount Enclosure, 30-1/4 in L x 24-1/4 in W x 12 in D, NEMA 4X/IP66, Fiberglass
nVent HOFFMAN A30H2412GQRLP A17W3/A17WM 1-Door Medium Wall Mount Enclosure, 30-1/4 in L x 24-1/4 in W x 12 in D, NEMA 4X/IP66, Fiberglass
SKU: HOFA30H2412GQRLP
Manufacturer Part Number: A30H2412GQRLP
UPC: 783510295707
Documents
Features
- Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Type 316L stainless steel padlocking power glide handle on 3 point latch versions assures security and a water-tight seal while still allowing convenient access
- Quick-release latch versions feature fiberglass-reinforced polyester latches with integral type 316L stainless steel padlocking hasp
- Seams are sealed, no holes or knockouts
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded in angular sealing flange directs water away from gasket area
- Gasket assures water-tight and dust-tight seal
- Fiberglass material is easily punched, drilled, filed or sawed
- Data pocket is high impact thermoplastic
- Plated steel collar studs for mounting optional panels and terminal block kits
- Material is halogen free
- Standard fiberglass enclosure is gray inside and out, handle is type 316L stainless steel electropolished
- A full range of modification options are available for wall mount fiberglass enclosures, including variable depths to accommodate larger controls
- These enclosures feature padlockable polyester latches, or Hoffmans exclusive POWERGLIDE Handle with 3 point latching, for ease of access with increased security
- Handle is Type 316L stainless steel electropolished
Specification
| Length | 30-1/4 in |
|---|---|
| Lock | Quick Release Latch |
| Material | Fiberglass |
| Mounting Type | Wall |
| NEMA Rating | NEMA 4X/IP66 |
| Color | Gray |
| Cover Type | Hinged |
| Depth | 12 in |
| Panel Size | 27 x 21 in |
| Width | 24-1/4 in |
| Type | 1-Door Medium |
| Series | A17W3/A17WM |
| Standard & Approvals | UL 508A Listed, Type 3, 3R, 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3, 3R, 4, 4X, 12, 13, File No. E61997, Enclosure flammability evaluated per UL 508A, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, IEC 60529, IP66, Meets NEMA Type 3R, RoHS Complaint |
