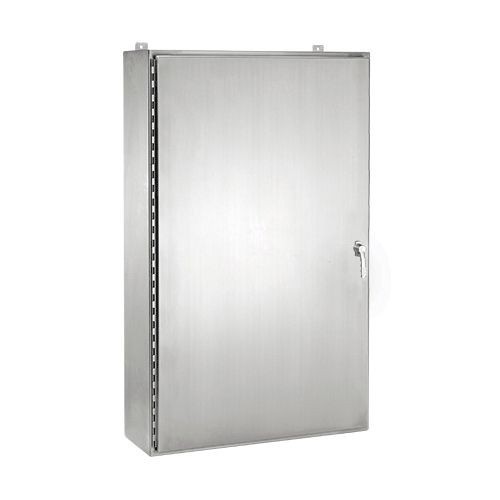

nVent HOFFMAN A36H3612SSLP3PT Single Door Wall Mount Enclosure, 36 in L x 36 in W x 12 in D, NEMA 4X/IP66
nVent HOFFMAN A36H3612SSLP3PT Single Door Wall Mount Enclosure, 36 in L x 36 in W x 12 in D, NEMA 4X/IP66
SKU: HOFA36H3612SSLP3PT
Manufacturer Part Number: A36H3612SSLP3PT
UPC: 783510143183
Features
- These enclosures feature Hoffman's exclusive power glide™ handle with 3 point latching
- 14 gauge type 304 or 316L stainless steel bodies and doors
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Internal 3 point latch and type 316L stainless steel padlocking power handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high impact thermoplastic
- Collar studs provided for mounting optional panel
- Exterior hardware on type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door, grounding stud on body
- Rolled lip around three sides of door
- Handle is electropolished
- 14 ga 304 stainless steel
- NO 4 smooth brushed finish
Specification
| Length | 36 in |
|---|---|
| Lock | 3-Point Latch With Padlock |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | White |
| Cover Type | Continuous Hinged |
| Width | 36 in |
| Series | A4SW3 |
| Panel Size | 33 x 33 in |
| Depth | 12 in |
| Application | For indoor or outdoor applications that require corrosion protection, convenient access and padlocking security |
| Finish | Brushed |
| Catalog ID | HOFA36H3612SSLP3PT |
| NEMA Rating | NEMA 4X/IP66 |
| Material | 304 Stainless Steel |
| Type | Single Door |
| Standard & Approvals | UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13, IEC 60529, IP66, Meets NEMA Type 3RX requirements, RoHS Complaint |
