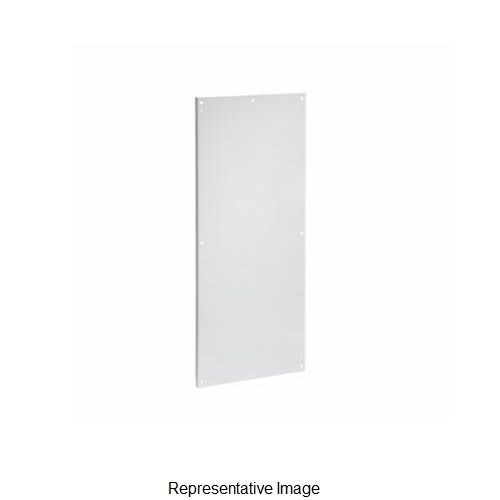

nVent HOFFMAN A90P72F1 PNL30 Full Enclosure Panel, 68 in W x 78 in H, 10 ga Steel, White

Pick Up Only
Selected nVent HOFFMAN A90P72F1 PNL30 Full Enclosure Panel, 68 in W x 78 in H, 10 ga Steel, White
nVent HOFFMAN A90P72F1 PNL30 Full Enclosure Panel, 68 in W x 78 in H, 10 ga Steel, White

Documents

Short Description

Panels for two-door single access and two-door dual access Free-Stand Type 4, 4X and 12 Enclosures with mounting channel are 11 gauge steel and can be positioned anywhere along horizontal mounting channels (see Sections B-B for limitations). Half-length panels can be located in the upper or lower portion of the enclosure. Some assembly is required. Panels are finished with white polyester powder paint or a conductive, corrosion-resistant coating and furnished with plated mounting hardware. Center support is furnished with each full panel or half panel for two-door enclosures. The center support attaches to the top and bottom mounting channels and can be positioned from front to back in the enclosure. The center support can be used with heavy duty panel supports to support panels of various heights.

Features

    Specification

    Minimum Order Qty
    1
    Order Interval
    1
    Color
    White
    Finish
    Polyester Powder Painted
    Series
    PNL30
    Standard & Approvals
    ARRA Compliant, Buy American Act Compliant, RoHS Compliant
    Width
    68 in
    Type
    Full
    Suitable For Use With
    90.06 x 72.06 in Type 4/4X/12 2-Door Free-Standing Enclosure with Mounting Channel
    Catalog ID
    HOFA90P72F1
    Material
    10 ga Steel
    Height
    78 in
