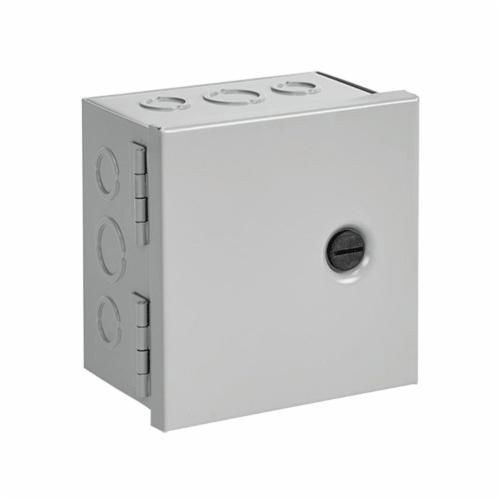

nVent HOFFMAN AHE6X6X4 Pull Box With Knockout, 6 in L x 6 in W x 4 in D, NEMA 1/IP30, Steel

Selected AHE10X8X4nVent HOFFMAN AHE8X8X4 Pull Box With Knockout, 8 in L x 8 in W x 4 in D, NEMA 1/IP30, Steel
AHE10X8X4nVent HOFFMAN AHE8X8X4 Pull Box With Knockout, 8 in L x 8 in W x 4 in D, NEMA 1/IP30, Steel

Documents

Features

  • 16 or 14 gauge steel
  • Various sizes of easily removable concentric knockouts on all four sides
  • Mounting holes on back of box
  • Provision for grounding
  • These boxes feature a recessed, slotted flush latch for security as well as knockouts on all four sides, making them suitable for a wide variety of applications
  • ANSI 61 gray
  • Polyester powder coated

Specification

Length
6 in
Material
Steel
Mounting Type
Wall
NEMA Rating
NEMA 1/IP30
Width
6 in
Cable Entry
(4) 3/4 - 1 in Knockouts, (8) 1/2 - 3/4 in Knockouts Sides, Top and Bottom
Color
Gray
Finish
Powder Coated
Standard & Approvals
UL 50, 50E Listed, Type 1, File No. E27567, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27567, NEMA/EEMAC Type 1, CSA File 42184 Type 1, IEC 60529, IP30, RoHS Complaint
Series
A90HC
Depth
4 in
Cover Type
Butt Hinged
