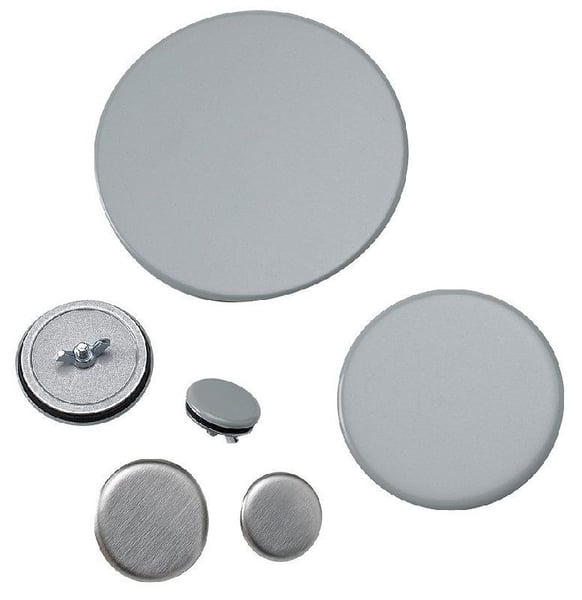

nVent HOFFMAN Hol-Tite AS075SS Enclosure Hole Seal, 3/4 in Conduit, 1.06 in Hole, For Use With Conduit Holes, Polished
nVent HOFFMAN Hol-Tite AS075SS Enclosure Hole Seal, 3/4 in Conduit, 1.06 in Hole, For Use With Conduit Holes, Polished
SKU: HOFAS075SS
Manufacturer Part Number: AS075SS
UPC: 783510594404
Documents
Features
- Available in multiple colors and sizes
- Oil resistant gasket provided
- 16 ga stainless steel backplate
- Seal, backplate, stud (10-24x5/8) and wing nut are 300 series stainless steel
- Seals will cover any size or shape of hole from 0.19 in diameter to maximum diameter
- Can be used on enclosure walls up to 0.31 in (8 mm) thick
Specification
| Hole Size | 1.06 in |
|---|---|
| Material | 304 Stainless Steel |
| Standard & Approvals | UL 508A Component Recognized, File No. E61997,CSA File No. 42186, IEC 60529, RoHS Complaint |
| Dimensions | 1.56 in Dia |
| Conduit Size | 3/4 in |
| Finish | Polished |
| Suitable For Use With | Conduit Holes |
| Series | HOL-SEALERS™ A80HS |
