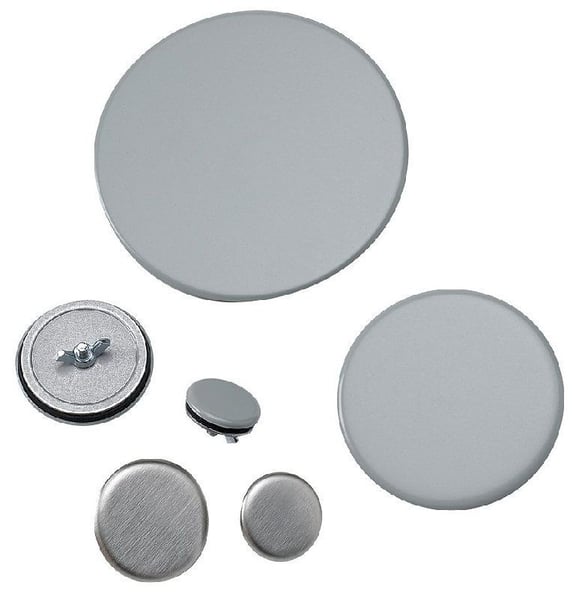

nVent HOFFMAN AS125 Enclosure Hole Seal, 1-1/4 in Conduit, 1.69 in Hole, For Use With Conduit Holes, Steel, Powder Coated
nVent HOFFMAN AS125 Enclosure Hole Seal, 1-1/4 in Conduit, 1.69 in Hole, For Use With Conduit Holes, Steel, Powder Coated
SKU: HOFAS125
Manufacturer Part Number: AS125
UPC: 783510597405
Documents
Features
- Available in multiple colors and sizes
- Oil resistant gasket provided
- 16 ga galvanized steel backplate
- Plated stud (10-32x5/8 in) and wing nut
- Steel seals have polyester powder paint finish over galvanized front surface
- Seals will cover any size or shape of hole from 0.19 in diameter to maximum diameter
- Can be used on enclosure walls up to 0.31 in (8 mm) thick
Specification
| Material | Steel |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Finish | Powder Coated |
| Series | HOL-SEALERS™ A80HS |
| Suitable For Use With | Conduit Holes |
| Standard & Approvals | UL 508A Component Recognized, File No. E61997,CSA File No. 42186, IEC 60529, RoHS Complaint |
| Application | For Seal Extra Pushbutton Holes, Conduit Openings And Knockout Openings Against Dust, Dirt, Oil And Water With Hoffman Hol-sealers™ |
| Dimensions | 2.19 in Dia |
| Conduit Size | 1-1/4 in |
| Catalog ID | HOFAS125 |
| Hole Size | 1.69 in |
