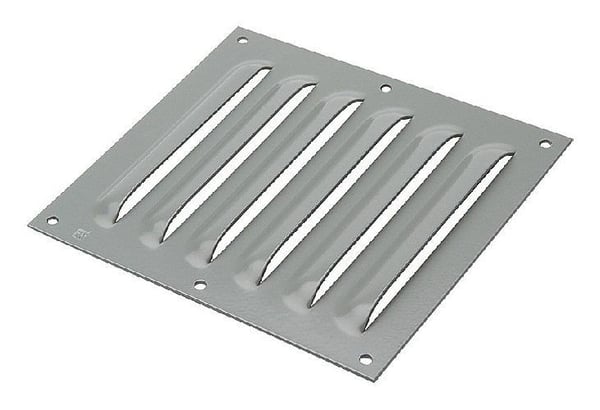

nVent HOFFMAN D85 Louver Plate Kit, For Use With 7.88 in H x 7.5 in W Fresh Air Enclosure Cooling, Steel
nVent HOFFMAN D85 Louver Plate Kit, For Use With 7.88 in H x 7.5 in W Fresh Air Enclosure Cooling, Steel
SKU: HOFAVK66
Manufacturer Part Number: AVK66
UPC: 783510249601
Documents
Features
- Designed to provide ventilation in enclosures where excessive internal heat or excessive moisture is a problem
- Although louvers cannot keep all moisture out of an enclosure, gasketing or sealing the perimeter of the louver plate reduces problems associated with moisture intrusion
- These kits may be easily installed in the field by making a cutout of the proper size and attaching the louver plate in place
- Louver plates are made from 14 gauge steel with an ANSI 61 gray polyester powder finish over pretreated surfaces or 316 stainless steel
- Hardware is furnished for mounting
- 6 louver
Specification
| Material | Steel |
|---|---|
| Series | D85 |
| Specifications | 6 in L x 0.31 in THK |
| Suitable For Use With | 7.88 in H x 7.5 in W Fresh Air Enclosure Cooling |
| Standard & Approvals | RoHS Complaint |
| Dimensions | 200 x 191 in |
