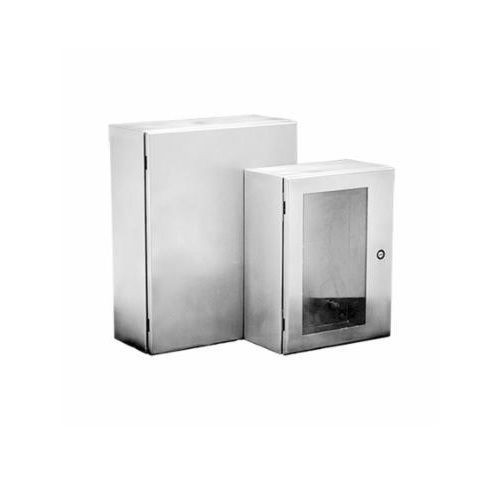

nVent HOFFMAN CONCEPT™ CSD16166SS CWS 1-Door Enclosure, 16 in L x 16 in W x 6 in D, NEMA 4X NEMA Rating, 304 Stainless Steel

Selected nVent HOFFMAN CONCEPT™ CSD16166SS CWS 1-Door Enclosure, 16 in L x 16 in W x 6 in D, NEMA 4X NEMA Rating, 304 Stainless Steel
nVent HOFFMAN CONCEPT™ CSD16166SS CWS 1-Door Enclosure, 16 in L x 16 in W x 6 in D, NEMA 4X NEMA Rating, 304 Stainless Steel

Short Description

For indoor or outdoor applications that require corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.

Features

  • Manufactured from type 304 or type 316L stainless steel
  • Minimum width body flange provides maximum body opening
  • External formed 90 deg body flange channels away liquids
  • Panel mounting studs fit optional CONCEPT™ panels and other accessories
  • Mounting holes in back of body for direct mounting for optional external mounting brackets
  • Corner formed doors are interchangeable and easily removed by pulling clip style hinge pins
  • Provision on door
  • quarter turn latches furnished with flush slotted insert
  • Seamless foam in place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door, grounding stud on body
  • Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes
  • Window doors have a clear polycarbonate window

Specification

Length
16 in
Lock
Quarter Turn Latch
Material
304 Stainless Steel
Mounting Type
Wall
Series
CWS
Type
1-Door
Application
Indoor/Outdoor Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cUL Listed per CSA C22.2 File No. 94 File No. E61997, CSA File No. 42186, VDE Approved, IEC 60529, UL 508A, UL File No. E61997
Depth
6 in
Finish
Brushed
Cover Type
Hinged
Width
16 in
Panel Size
14.2 x 14.2 in
NEMA Rating
NEMA 4X
