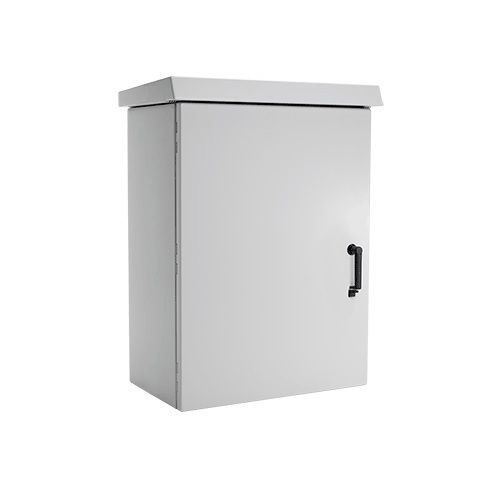

nVent HOFFMAN COMLINE® DCOM Wall Mount Enclosure, 23.62 in L x 23.62 in W x 19.68 in D, NEMA 3/3R/4/4X/12/IP66, Aluminum
nVent HOFFMAN COMLINE® DCOM Wall Mount Enclosure, 23.62 in L x 23.62 in W x 19.68 in D, NEMA 3/3R/4/4X/12/IP66, Aluminum
SKU: HOFECL606050P
Manufacturer Part Number: ECL606050P
UPC: 783510170264
Documents
Features
- Solar shield helps keep enclosure interior cool when cabinet is installed outdoors and directs liquids away from cabinet opening, can be removed for indoor installations
- Foam in place gasket provides environmental seal
- Padlocking L-handle provides a tight, secure door seal
- Door stop holds door in place during service for easier and faster maintenance
- Heavy duty hinged door is easily removed to facilitate equipment installation and removal
- Rack angles adjustable front to rear of cabinet
- Radius corners on cabinet eliminate sharp edges
- Stainless steel fasteners resist corrosion to maintain professional appearance
- Battery compartment has front vented captivated door
- Rack angles have EIA universal standard square hole spacing
- 8 in THK, depending on cabinet size
- Seams continuously welded and ground smooth for a finished appearance
- Studs for ground bar and rear mounting studs for wood panel
Specification
| Material | Aluminum |
|---|---|
| Series | DCOM |
| Standard & Approvals | UL 508A, Type 3, 3R, 4, 4X, 12, File No. E61997, CSA Certified, EEMAC Type 3, 3R, 4, 4X, 12, EC60529, MeetsTelcordia NEBS GR-487, GR-63, IEC 48D, Meets BICSI TDMM |
| Width | 23.62 in |
| NEMA Rating | NEMA 3/3R/4/4X/12/IP66 |
| Application | Outdoor Applications |
| Length | 23.62 in |
| Finish | Urethane Powder Coated |
| Includes | Rear Mounting Studs |
| Depth | 19.68 in |
