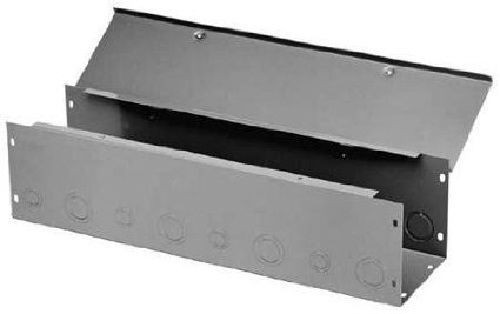

nVent HOFFMAN F44G36WK Straight Section Lay-In Wireway With Knockouts, 36 in L x 4 in W x 4 in H, Removable Hinged Cover

Selected nVent HOFFMAN F44G36WK Straight Section Lay-In Wireway With Knockouts, 36 in L x 4 in W x 4 in H, Removable Hinged Cover
nVent HOFFMAN F44G36WK Straight Section Lay-In Wireway With Knockouts, 36 in L x 4 in W x 4 in H, Removable Hinged Cover

Documents

Short Description

Hoffman products are developed in world-class test facilities, based on 70+ years of enclosures experience and 30+ years of cooling experience. They’re rigorously tested for dust infiltration, thermal cycling, salt fog corrosion, vibration resistance and many other standards to ensure they perform.

Features

  • Open top assembly
  • This wireway provides convenient cable installation and maintenance with its top hinged cover and an opening on one side so wires
  • Cables can be laid-in along the entire run without pulling
  • A variety of lengths and fittings provide increased design flexibility
  • Removable hinged cover latches with captive screws
  • 16 ga Steel
  • NEMA 1/3R, IP30
  • ANSI 61 Polyester Powder Paint

Specification

Height
4 in
Knockout Size
1/2 to 3/4 in
Length
36 in
Material
Steel
NEMA Rating
NEMA 1/3R
Number of Knockouts
12
Series
F40
Type
Straight Section
Width
4 in
Application
For convenient cable installation and maintenance with its top hinged cover and an opening on one side so wires and cables can be laid in along the entire run without pulling
Standard & Approvals
UL 870, File No. E27524 Listed, cUL Listed per CSA C22.2 No. 26, File No. E27524, RoHS Compliant
Color
Gray
Cover Type
Removable Hinged
Finish
Powder Coated
Includes
Captivated Plated Screw Fasteners
