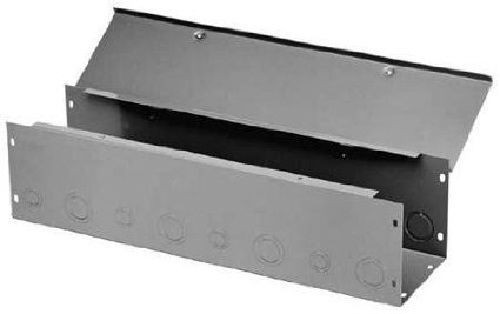

nVent HOFFMAN F66G12 Straight Section Lay-In Wireway Without Knockouts, 12 in L x 6 in W x 6 in H, Removable Hinged Cover

Selected nVent HOFFMAN F66G12 Straight Section Lay-In Wireway Without Knockouts, 12 in L x 6 in W x 6 in H, Removable Hinged Cover
nVent HOFFMAN F66G12 Straight Section Lay-In Wireway Without Knockouts, 12 in L x 6 in W x 6 in H, Removable Hinged Cover

Documents

Short Description

Hoffman products are developed in world-class test facilities, based on 70+ years of enclosures experience and 30+ years of cooling experience. They’re rigorously tested for dust infiltration, thermal cycling, salt fog corrosion, vibration resistance and many other standards to ensure they perform.

Features

  • Open top assembly
  • This wireway provides convenient cable installation and maintenance with its top hinged cover and an opening on one side so wires
  • Cables can be laid-in along the entire run without pulling
  • A variety of lengths and fittings provide increased design flexibility
  • Removable hinged cover latches with captive screws
  • 16 ga Steel
  • NEMA 1/3R, IP30
  • ANSI 61 Polyester Powder Paint

Specification

Height
6 in
Material
Steel
NEMA Rating
NEMA 1/3R
Type
Straight Section
Width
6 in
Standard & Approvals
UL 870, File No. E27524 Listed, cUL Listed per CSA C22.2 No. 26, File No. E27524, RoHS Compliant
Color
Gray
Finish
Powder Coated
Application
For convenient cable installation and maintenance with its top hinged cover and an opening on one side so wires and cables can be laid in along the entire run without pulling
Series
F40
Length
12 in
Includes
Captivated Plated Screw Fasteners
Cover Type
Removable Hinged
