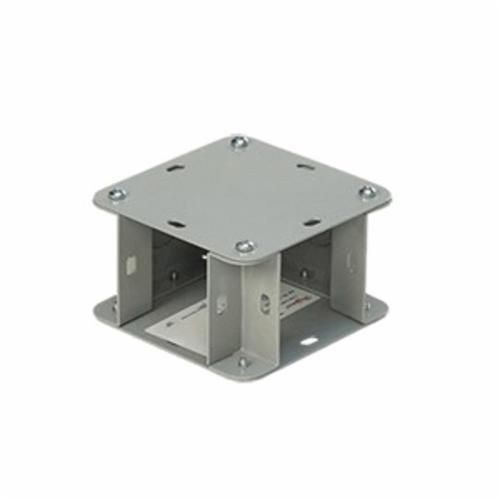

nVent HOFFMAN F66G90TX Tee Cross Wireway Elbow, 90 deg Bend Angle, 6 in, Steel

Selected F88G90TXnVent HOFFMAN F66G90TX Tee Cross Wireway Elbow, 90 deg Bend Angle, 6 in, Steel
F88G90TXnVent HOFFMAN F66G90TX Tee Cross Wireway Elbow, 90 deg Bend Angle, 6 in, Steel

Short Description

Hoffman products are developed in world-class test facilities, based on 70+ years of enclosures experience and 30+ years of cooling experience. They’re rigorously tested for dust infiltration, thermal cycling, salt fog corrosion, vibration resistance and many other standards to ensure they perform.

Features

  • Forms left or right 90 degree turns
  • Can be used as a tee or cross
  • Use with open adapter for cable entrance in top and bottom
  • 4 in intersection of center lines
  • 8 in L
  • 14/16 ga Steel material
  • ANSI 61 Polyester Powder Paint finish

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Bend Angle
90 deg
Catalog ID
HOFF66G90TX
Color
Gray
Finish
Polyester Powder
Series
F40PF
Size
6 in
Suitable For Use With
Type 1 Lay-In Wireway
Type
Tee Cross
Standard & Approvals
UL 870/E27524, cUL per CSA C22.2 No 26, NEMA 1, IEC 60529, RoHS Compliant
Includes
(2) Closure Plates
