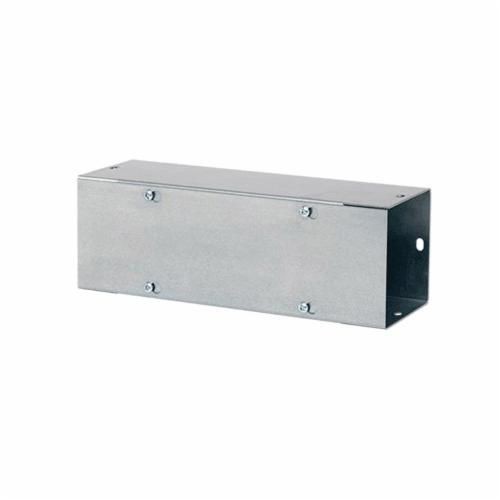

nVent HOFFMAN F88T136GV Straight Section Lay-In Wireway Without Knockouts, 36 in L x 8 in W x 8 in H, Flat Cover, Steel

Selected F44T124GVnVent HOFFMAN F88T148GV Straight Section Lay-In Wireway Without Knockouts, 48 in L x 8 in W x 8 in H, Flat Cover, Steel
F44T124GVnVent HOFFMAN F88T148GV Straight Section Lay-In Wireway Without Knockouts, 48 in L x 8 in W x 8 in H, Flat Cover, Steel

Documents

Short Description

Hoffman products are developed in world-class test facilities, based on 70+ years of enclosures experience and 30+ years of cooling experience. They’re rigorously tested for dust infiltration, thermal cycling, salt fog corrosion, vibration resistance and many other standards to ensure they perform.

Features

  • Open top assembly
  • Keyhole screw slots on flat covers
  • Knockouts on wireway sides
  • Open design on one side so wires and cables can be laid-in safely along the entire run without pulling
  • 16 or 14 gauge galvanized steel covers and bodies
  • A variety of lengths and fittings accommodate design requirements
  • NEMA 1, IP30

Specification

Height
8 in
Length
36 in
Material
Steel
NEMA Rating
NEMA 1
Series
F40G
Width
8 in
Color
Gray
Cover Type
Flat
Finish
Electro Galvanized
Type
Straight Section
Standard & Approvals
UL 870, File No. E27524, cUL per CSA C22.2 No. 26, RoHS Compliant
Application
For an open design on one side so wires and cables can be laid in safely along the entire run without pulling
