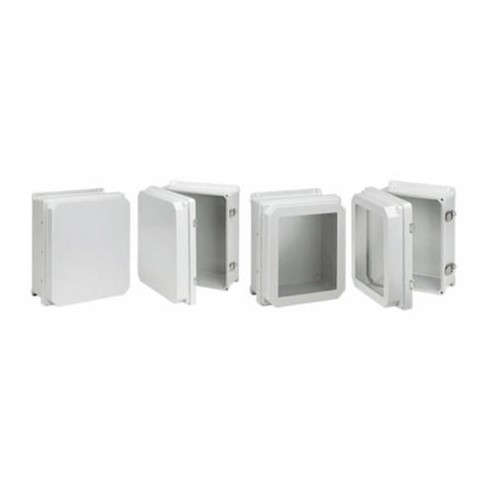

nVent HOFFMAN RHJ1816HWPL2LG Wall Mount Enclosure, 19.32 in L x 17.31 in W x 11.07 in D, NEMA 4X/IP66, Fiberglass
nVent HOFFMAN RHJ1816HWPL2LG Wall Mount Enclosure, 19.32 in L x 17.31 in W x 11.07 in D, NEMA 4X/IP66, Fiberglass
SKU: HOFRHJ1816HWPL2LG
Manufacturer Part Number: RHJ1816HWPL2LG
UPC: 783510158675
Features
- Compression molded fiberglass construction
- Overlapping raised solid- and window covers
- Windows are clear polycarbonate
- Cover fastens with padlockable type 316 stainless steel latches
- Type 304 stainless steel piano hinges
- Integral mounting brackets
- Enclosures protect equipment and operators from indirect electrical contact
- Material is halogen free
- Enclosures feature a raised, hinged, overlapping cover design that ensures a more-secure seal and offers increased internal space for mounting components
- Latches provide easy access and security
Specification
| Lock | Padlock Latch |
|---|---|
| Material | Fiberglass |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HOFRHJ1816HWPL2LG |
| Depth | 11.07 in |
| Standard & Approvals | UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315, cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No.E54315, Enclosure flammability per UL 508A, RoHS Complaint |
| Width | 17.31 in |
| Series | J |
| Cover Type | Raised Overlapping |
| Color | Light Gray |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 19.32 in |
