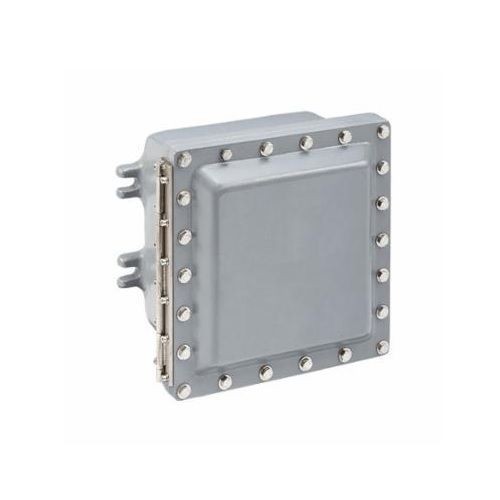

nVent HOFFMAN SX7E864 HL5U Junction Box, 9.76 in L x 11.89 in W x 6.18 in D, NEMA 3/4X/7/9, Aluminum

Selected nVent HOFFMAN SX7E864 HL5U Junction Box, 9.76 in L x 11.89 in W x 6.18 in D, NEMA 3/4X/7/9, Aluminum
nVent HOFFMAN SX7E864 HL5U Junction Box, 9.76 in L x 11.89 in W x 6.18 in D, NEMA 3/4X/7/9, Aluminum

Features

  • Low copper aluminum alloy enclosure with stainless steel bolts and screws for corrosion resistance
  • Gasket O-ring provides type 4X rating
  • Internal mounting panel
  • External earth screw
  • NPT threads for rigid conduit (optional/custom)
  • Body and cover can be drilled and threaded according to customer's specification

Specification

Material
Aluminum
Mounting Type
Wall
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, NEC 500 - 503, Class I, Division 1 Group C, D, Class II Group E, F, G, Class III, UL 1203, 886 Listed
Color
Gray
Finish
Polyester Powder Coated
Width
11.89 in
Series
HL5U
NEMA Rating
NEMA 3/4X/7/9
Length
9.76 in
Depth
6.18 in
Application
For use in hazardous locations
