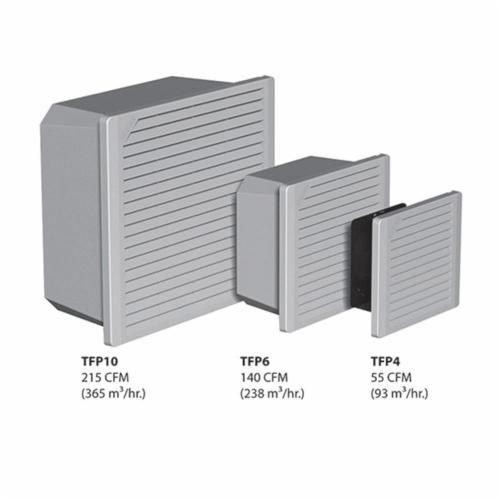

nVent HOFFMAN TFP101 TFP Cooling Fan Package With Fan, Air Filter, Composite Air Plenum, Finger Guard and Grille, 115 VAC
nVent HOFFMAN TFP101 TFP Cooling Fan Package With Fan, Air Filter, Composite Air Plenum, Finger Guard and Grille, 115 VAC
SKU: HOFTFP101
Manufacturer Part Number: TFP101
UPC: 783510413897
Documents
Features
- Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
- Exhaust Package includes air filter, filter retainer with integral finger guard and grille
- EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
- Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
- Washable foam (type 1) or disposable (type 12) filter in fan
- Dynamically-balanced fan impellers molded from polycarbonate material
- 6 and 10 in fans have ball bearing construction and splitcapacitor motors that are thermally protected to avoid premature failure
- Fans have lead wires for power connection with ends stripped 1/2 in. (12 mm)
- All mounting hardware and installation instructions are furnished
- Engineered for 50,000 hours of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)
- ABS composite grille is black
- 50/60 Hz frequency
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Enclosure Type | NEMA 1 |
| Series | D85 |
| Mounting Type | Side |
| Motor Type | Split Capacitor |
| Grille Size | 10 in |
| Grille Material | ABS |
| Dimensions | 11.81 in H x 12.99 in W x 5.25 in D |
| Catalog ID | HOFTFP101 |
| Amperage Rating | 0.58/0.7 A |
| Air Flow | 180/215 cfm |
| Sound Level | 54/61 dB |
| Power Rating | 64/80 W |
| Standard & Approvals | UL 508A, File No. E61997, CSA Certified, CE Certified, RoHS Complaint |
| Application | Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controlls, Wind Energy Systems |
| Voltage Rating | 115 VAC |
| Type | TFP |
