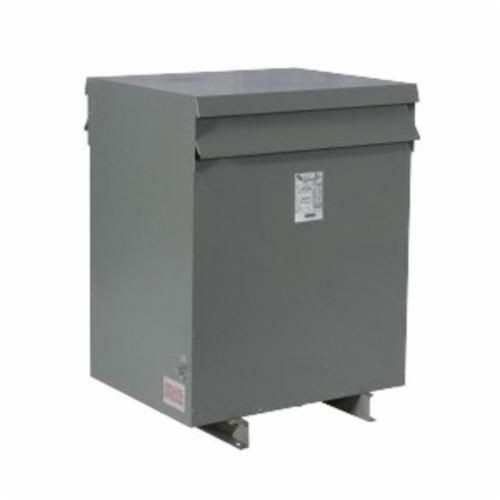

HPS Sentinel® NMK112KD Distribution Transformer, 480 VAC Delta Primary, 240 Delta/120 CT VAC Secondary, 150 kVA, 60 Hz, 3 Phase

Pick Up Only
Selected NMK045KBHPS Sentinel® NMK150KD Distribution Transformer, 480 VAC Delta Primary, 240 Delta/120 CT VAC Secondary, 150 kVA, 60 Hz, 3 Phase
NMK045KBHPS Sentinel® NMK150KD Distribution Transformer, 480 VAC Delta Primary, 240 Delta/120 CT VAC Secondary, 150 kVA, 60 Hz, 3 Phase

Documents

Features

  • Efficiencies and load losses will be calculated at temperature reference of 75 deg C at unity power factor (UPF)
  • They are either ventilated, totally enclosed
  • Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation
  • High grade non-aging, fully processed silicon steel laminations or better core
  • Copper or aluminum windings, with terminations brazed, welded or bolted coil
  • Front accessible separate grounding, separate high and low voltage terminations with either lugs or pads
  • ST-20 compliant taps
  • ANSI 61 UL 50 gray enclosure finish

Specification

Standard & Approvals
UL Listed, CSA Certified, RoHS Complaint
Power Rating
150 kVA
Primary Voltage
480 VAC Delta
Secondary Voltage
240 Delta/120 CT VAC
Connection Type
Lug/Pad
Enclosure Type
NEMA 3R
Frequency Rating
60 Hz
Mounting Type
Floor
Insulation
220 deg C
Dimensions
38 in H x 26 in W x 25 in D
Phase
3
