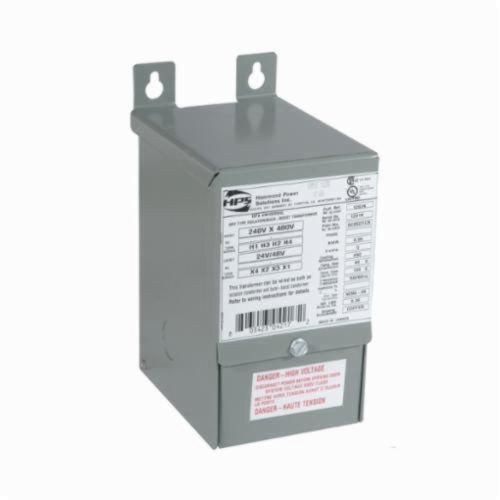

HPS Universal™ Q1C0ERCB Commercial Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VAC Secondary, 1 kVA, 50/60 Hz
HPS Universal™ Q1C0ERCB Commercial Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VAC Secondary, 1 kVA, 50/60 Hz
SKU: HAMQ1C0ERCB
Manufacturer Part Number: Q1C0ERCB
UPC: 803423033842
Documents
Features
- Copper winding
- Economical and efficient
- Smaller and lighter than general purpose step down transformers
- Used as an Isolation Transformer, these units are effective at operating low voltage lighting, machine tool circuits, relays, bells, small motors and solenoids
- Used as a buck-boost, units can correct line voltage problems from 5% to 25% above or below the nominal voltage
- All welded core construction made with high quality, high permeability silicon steel laminations
- Computer designed coils, accurately wound with optimum mean turns made from high quality magnetic wire with insulation foil
- Front accessible wiring compartment with high and low voltage copper lead wires or tabs
- ANSI 61 UL 50 gray enclosure finish
- 40 deg C maximum
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting Type | Wall |
| Phase | 1 |
| Enclosure Type | NEMA 3R |
| Dimensions | 10.5 in H x 5.88 in W x 5.5 in D |
| Type | Commercial Encapsulated |
| Temperature Rating | 30 deg C |
| Secondary Voltage | 12/24 VAC |
| Primary Voltage | 120/240 VAC |
| Power Rating | 1 kVA |
| Insulation | 130 deg C |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Connection Type | Lead Wires/Tabs |
