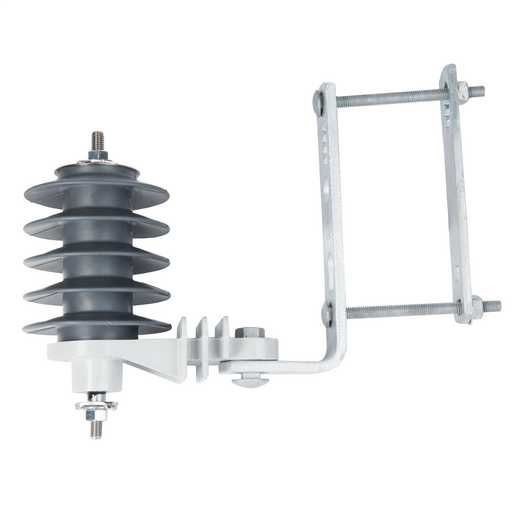

OHIO BRASS 2216097224 PVR Optima Riser Pole Distribution Surge Arrester, 10 kV Duty Cycle, 23.1/24.1/25.1/27/29.8/34.6 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer
OHIO BRASS 2216097224 PVR Optima Riser Pole Distribution Surge Arrester, 10 kV Duty Cycle, 23.1/24.1/25.1/27/29.8/34.6 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer
SKU: HPS2216097224
Manufacturer Part Number: 2216097224
UPC: 096359261421
Documents
Specification
| Material | ESP Polymer |
|---|---|
| Mounting Type | Insulating Bracket with Disconnector |
| Operating Voltage | 8.4 kV |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Duty Cycle Voltage | 10 kV |
| Strike Distance | 6.1 in |
| Surge Protection Voltage | 21.3 kV |
| Temperature Rating | 115 deg C |
| Dimensions | 9.4 in H |
| Creepage Distance | 15.4 in |
| Catalog ID | HPS2216097224 |
| Amperage Rating | 250 A |
