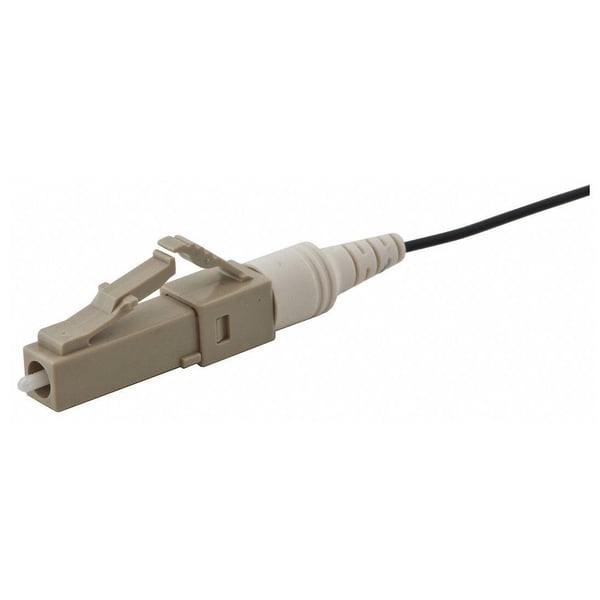

PREMISE WIRING PROclick® OptiChannel™ FCLC900K62M12 Pre-Polished Fiber Optic Connector, LC Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um, 1.5 mm Zirconia Ferrule

Selected FCLC900K62M12PREMISE WIRING PROclick® OptiChannel™ FCLC900K62M12 Pre-Polished Fiber Optic Connector, LC Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um, 1.5 mm Zirconia Ferrule
FCLC900K62M12PREMISE WIRING PROclick® OptiChannel™ FCLC900K62M12 Pre-Polished Fiber Optic Connector, LC Connector, 62.5/125 um OM1 Multi-Mode Fiber, 900 um, 1.5 mm Zirconia Ferrule

Short Description

Hubbell’s new PROclick™ pre-polished SC and LC fiber connectors are a reliable, low cost field termination solution, eliminating adhesives and polishing. Hubbell's PROclick™ pre-polished SC and LC connectors provide a quick, simple termination method, featuring a pre-installed cleaved fiber with an index-matching splice mechanism, and a precision factory pre-polished zirconia ceramic ferrule. Smooth fiber feed, and a micron-precision fiber alignment mechanism ensures a low loss, high yield termination.

Features

  • Precision low-loss factory polished connector with integral splice and fiber clamp
  • Simple and fast connector termination, with no adhesives or field polishing required
  • Provisions for visual light source verification to achieve optimal splice transmission
  • Wide operating temperature range for thermally stable optical performance
  • 10 mm cleave length
  • 900 micron buffer with break-out tubing
  • 0.5 dB typical, 0.75 dB max insertion loss
  • 35 dB typical, 22 dB min return loss
  • -40 to 75 deg C operating temperature

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
HPWFCLC900K62M12
Standard & Approvals
ANSI/TIA-568.3-D, TIA-604-FOCIS
Cable Construction
62.5 UM
Connector Type
LC
Ferrule Type
1.5 mm Zirconia
Fiber Type
62.5/125 MM-OM1
Type
Pre-Polished
Color
Beige
