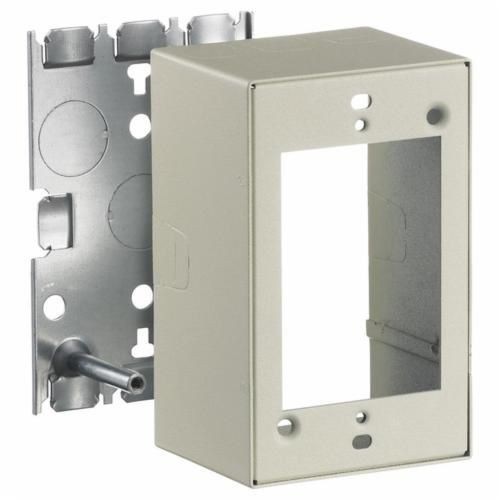

Hubbell® HBL5744SIV Deep Switch and Receptacle Box, 2.82 in L x 2-1/4 in W x 4.54 in H, Steel, Ivory

Selected HBL5744SIVHubbell® HBL5744SIV Deep Switch and Receptacle Box, 2.82 in L x 2-1/4 in W x 4.54 in H, Steel, Ivory
HBL5744SIVHubbell® HBL5744SIV Deep Switch and Receptacle Box, 2.82 in L x 2-1/4 in W x 4.54 in H, Steel, Ivory

Features

  • Enhanced datacom capabilities
  • Ideal for datacom and oversized neutral applications
  • Allows up to three Cat 5e or two Cat 6 cables
  • Base has two 1/2 in trade size knockouts
  • 1-gang

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
HWDHBL5744SIV
Standard & Approvals
ANSI/TIA-569-B, CSA C22.2 No. 62, CSA LR87514, NEC Article 386, UL5, UL E253976/E253830/E253833
Suitable For Use With
HBL500, HBL750 Series Single Channel Metal Raceway
Type
Deep
Finish
Painted
Length
2.82 in
Height
4.54 in
Width
2-1/4 in
Color
Ivory
Material
Steel
