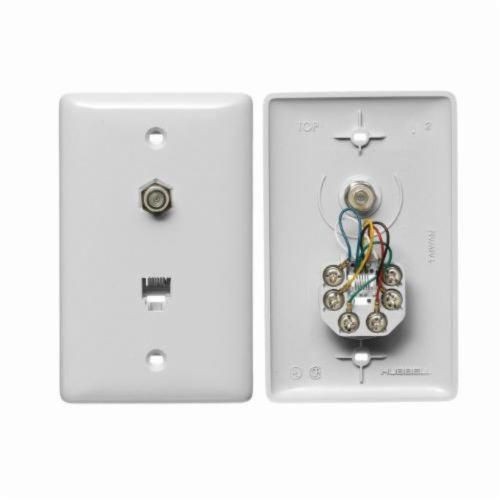

HUBBELL® netSELECT® NS748W 1-Gang Molded-In Plate, Screw Terminal Connection, Wall Mount, 6 Jack Position
HUBBELL® netSELECT® NS748W 1-Gang Molded-In Plate, Screw Terminal Connection, Wall Mount, 6 Jack Position
SKU: HWSNS748W
Manufacturer Part Number: NS748W
UPC: 883778501647
Documents
Features
- High impact resistant thermoplastic Construction
- Convenient screw down terminals
- Plate profile, color and surface finish match Hubbell electrical wallplates
- Aesthetically pleasing, molded-in appearance
- One RJ11 jack, female to female connection
- Per TIA contact resistance
- -40 to 75 deg C temperature rating
Specification
| Jack Position | 6 |
|---|---|
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HWSNS748W |
| Color | White |
| Configuration Type | 6 Conductor |
| Connection Type | Screw Terminal |
| Type | 1-Gang |
| Application | For voice and CATV/satellite communication applications |
| Standard & Approvals | UL 1863, CSA Certified, Meets FCC Part 68, ANSI/TIA-568-C.2 Standard |
