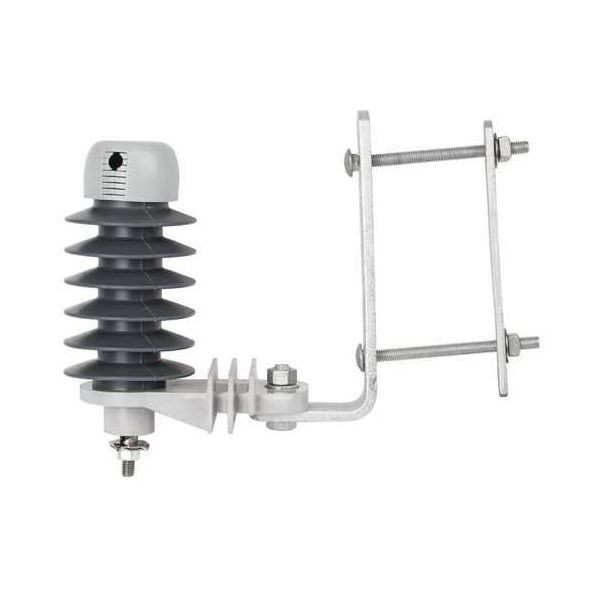

OHIO BRASS 2137227324 PDV-100 Optima Heavy Duty Distribution Surge Arrester, 27 kV Duty Cycle, 69.2/74/78.4/85.5/97.1/114.5 kV Maximum Discharge, 22 kV Operating, ESP™ Polymer

Selected 2137057324OHIO BRASS 2137227324 PDV-100 Optima Heavy Duty Distribution Surge Arrester, 27 kV Duty Cycle, 69.2/74/78.4/85.5/97.1/114.5 kV Maximum Discharge, 22 kV Operating, ESP™ Polymer
2137057324OHIO BRASS 2137227324 PDV-100 Optima Heavy Duty Distribution Surge Arrester, 27 kV Duty Cycle, 69.2/74/78.4/85.5/97.1/114.5 kV Maximum Discharge, 22 kV Operating, ESP™ Polymer

Documents

Short Description

Hubbell introduced the first U.S. non-ceramic arrester in 1986 and continues to be the market leader with a full line of polymer arresters for distribution voltages. The PDV-65 offers cost effective protection for a 5 kA class arrester. The PDV-100 serves the IEC class 1 arrester market. The Optima disconnector improves system reliability and increases temporary overvoltage (TOV) capability. The Optima line includes normal duty (ND), heavy duty (HD), distribution medium (DM) and distribution high (DH) arrester products. The PVR Optima targets riser pole and cable applications and the PVI-LP is our IEC Class 2 offering. As a market leader in arrester technology since 1950, Hubbell has a proven track record of advanced arrester technology, distinguished product quality, and extraordinary customer support that establishes Hubbell as a premier manufacturer of arrester products.

Features

  • Over 30 years of excellent field performance with over 36 million distribution arresters installed
  • Long lasting ESP™ housing material with superior mechanical strength and electrical characteristics
  • Reliable capacitive disconnector operates at fault currents as low as 1 A
  • Dynamic triple sealing system protects internal components from moisture ingress to extend service lifetime
  • High quality MOV discs made in Wadsworth, Ohio since 1978
  • 100% routine tested
  • 69.2 kV at 1.5 kA, 74 kV at 3 kA, 78.4 kV at 5 kA, 85.5 kV at 10 kA, 97.1 kV at 20 kA, 114.5 kV at 40 kA maximum discharge voltage

Specification

Mounting Type
Panel
Amperage Rating
250 A
Temperature Rating
115 deg C
Material
ESP™ Polymer
Surge Protection Voltage
63.3 kV
Strike Distance
13.4 in
Standard & Approvals
IEEE C62.11, IEC 60099-4 Edition 2.2
Includes
Fasteners, Isolators and Terminal Attachments
Duty Cycle Voltage
27 kV
Creepage Distance
39.6 in
Bottom Terminal
Isolator/Hex Nut/Flat Washer/Nylon Retainer Washer/Wire Clamp
BIL Rating
280 kV
Application
Distribution Applications
Dimensions
16.4 in H
Operating Voltage
22 kV
Maximum Discharge Voltage
69.2/74/78.4/85.5/97.1/114.5 kV
