OHIO BRASS 2195363001 VL Series Surge Arrester, 36.5 kV Operating, 45 kV Duty Cycle, Metal Top/Tripod Base Mount

Pick Up Only
Selected 2160053001OHIO BRASS 2195363001 VL Series Surge Arrester, 36.5 kV Operating, 45 kV Duty Cycle, Metal Top/Tripod Base Mount
2160053001OHIO BRASS 2195363001 VL Series Surge Arrester, 36.5 kV Operating, 45 kV Duty Cycle, Metal Top/Tripod Base Mount

Documents

Short Description

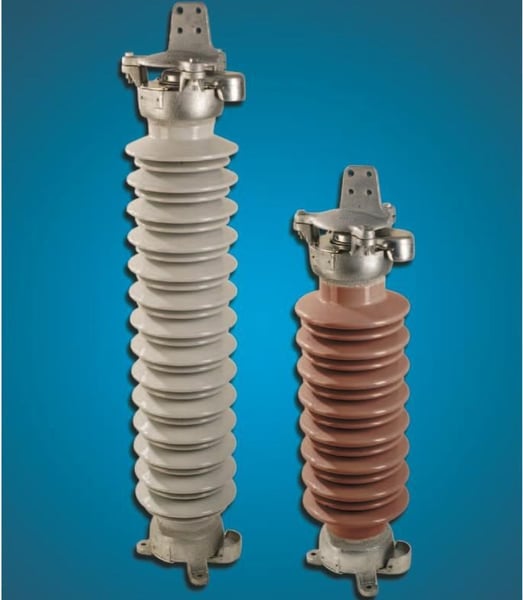

Porcelain housed surge arresters have been the standard in the industry for the last 50 years. The VL/MVN family of surge arresters continue in this proud tradition and they are available for use on system voltages from 2.4 kV to 500 kV (2.52 kV maximum to 550 kV max). They offer high mechanical strength compared to polymer housed station class surge arresters. Additionally, the MVN family (up to 353 kV MCOV) meets the requirements for High Seismic Performance per IEEE Standard 693-2005.

Features

  • Porcelain housing for maximized mechanical performance
  • Single column of MOV discs and aluminum spacers (as required) centrally located within housing
  • Disc column held under high spring compression between ductile iron end fittings affixed to housing
  • Directional pressure relief system built integrated into end fittings
  • 96.8 kV at 1.5 kA, 102 kV at 3 kA, 106 kV at 5 kA, 113 kV at 10 kA, 127 kV at 20 kA, 146 kV at 40 kA maximum discharge voltage

Specification

Material
Porcelain
Amperage Rating
250 A
Standard & Approvals
IEEE 693-2005
Temperature Rating
-40 to 40 deg C
Dimensions
31.9 in H
Operating Voltage
36.5 kV
Mounting Type
Metal Top/Tripod Base
Maximum Discharge Voltage
96.8/102/106/113/127/146 kV
Surge Protection Voltage
88.3 kV
Duty Cycle Voltage
45 kV
Creepage Distance
41 in
Bottom Terminal
Single Eye Bolt
